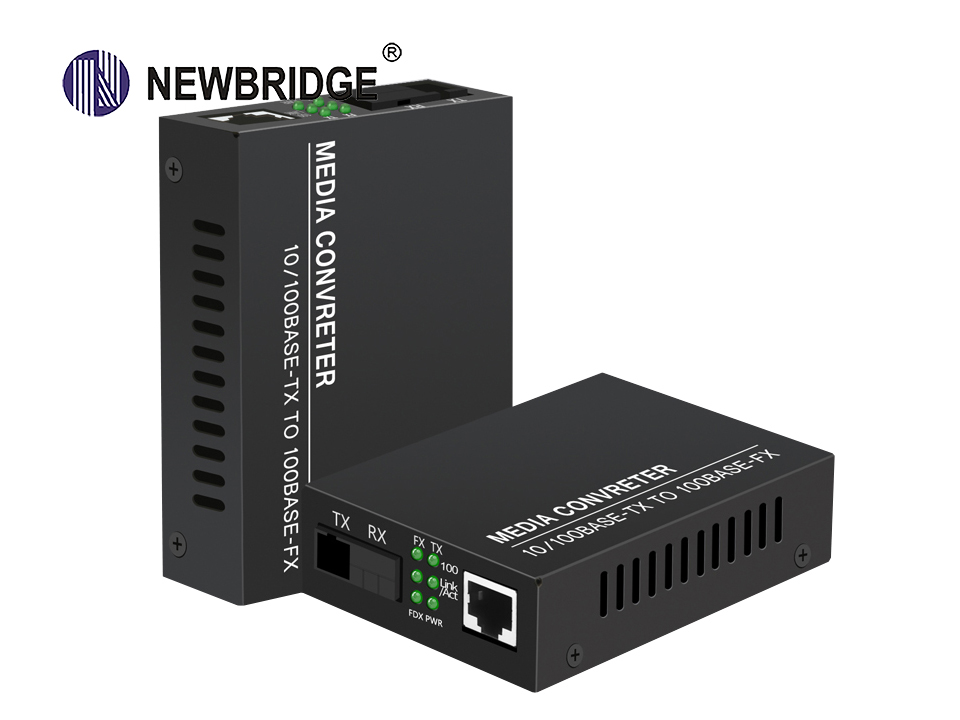

10/100M Smart Media Converter with DIP switch

FEATURES

•  10/100M smart media converter

•  1*100M optical port ,1*10/100M RJ45

•  100MSinglefiberSingle,TX1310nm/RX1550nm,SC, 0~20KM,Standalone;

•  Support LFP function, Auto MDI / MDI X

•  LFP (Link Fault Pass-Through) for indication of a link failure on the transmitting  path  of the  FX  receiving circuitry.

•  Supporting Far End Fault function on FX port

•  Supporting   Transparent   to   802.1Q   VLAN   tagged packets

•  Supporting the transmission of extra-long packets up to 1600 bytes

•  Supporting  store  and  forward   mode  /  transparent transfer mode selectable by DIP switch

•  Provides    user    accessible    settings    for   TP     port configuration,    disabling     link    fault     pass-through function

•  Extremely  low  power  consumption  (less  than  2W), low  heat,  reliable  quality,  stable  performance,  and long lifetime

Newbridge®10/100M  media  converter  with  external  power  supply  are  designed  to transmit  and  receive  10/100Mbps  data  over  optical  fiber.  The   electrical  interface  will Auto-Negotiate  to  a  100Mbps  or  100Mbps  Ethernet  rate  without  any  adjustments.  The optical interface operates at a 100Mbps Ethernet rate. Both are environmentally hardened to operate  in  extreme  temperatures.  LED  indicators  are  provided  for  confirming  equipment operating status.

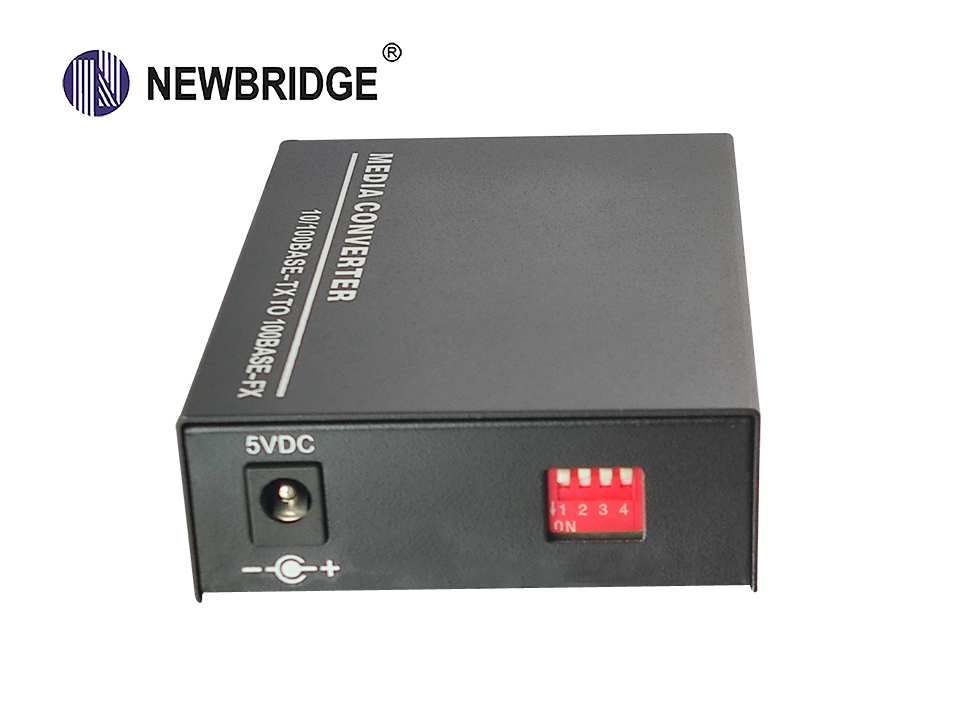

Specially:This equipment also supports fixed 100M ethernet rate with the DIP switch
