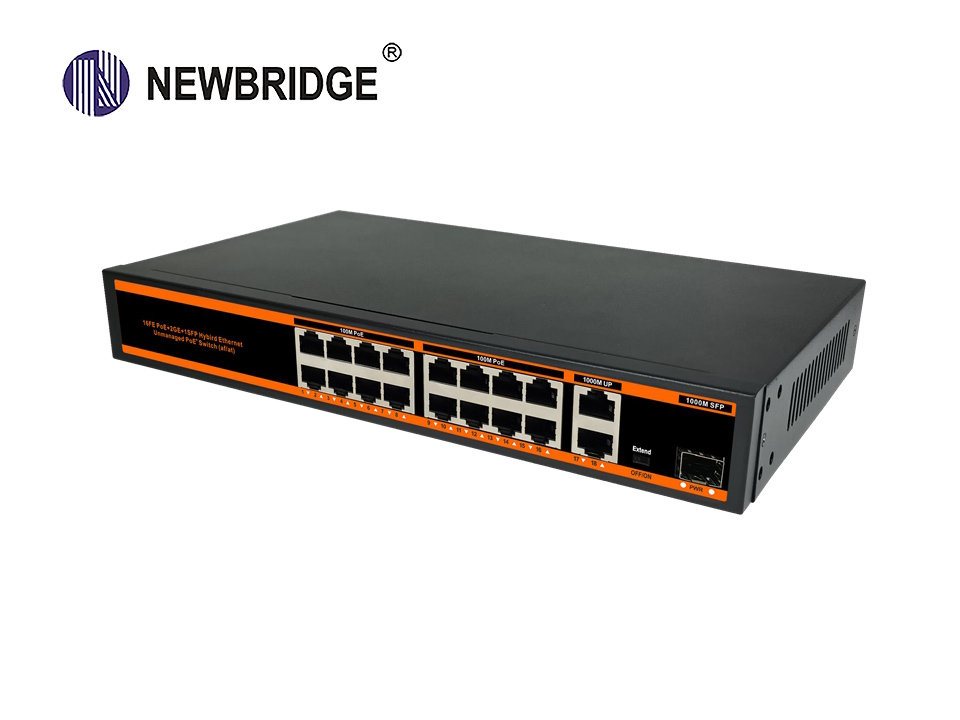

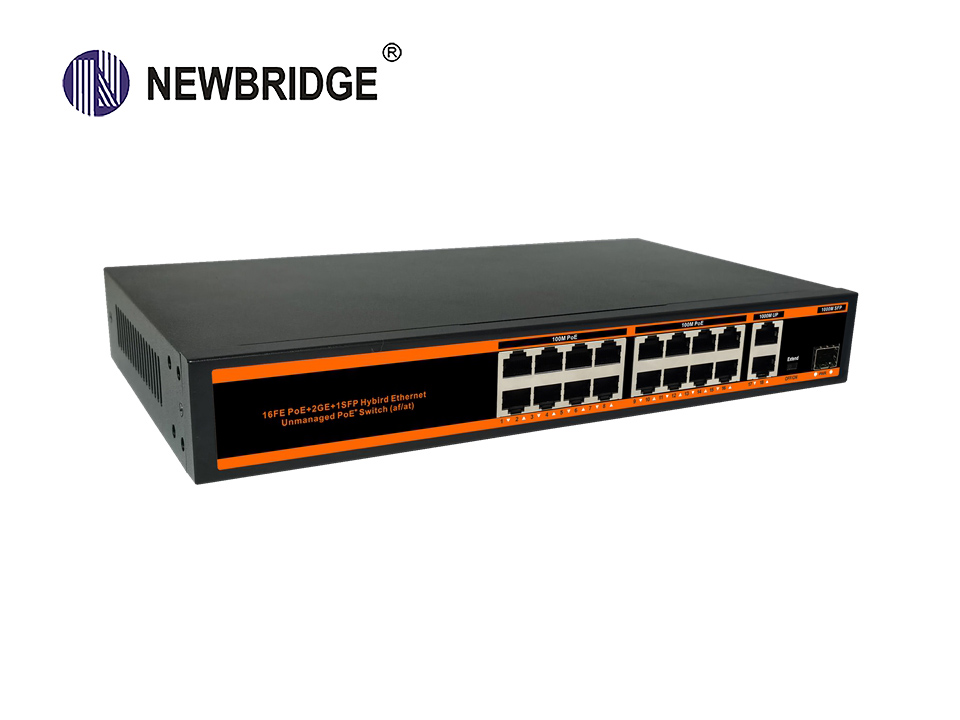

16 prot PoE 10/100Mbps+2 LAN 1Gbps+1Gbps SFP Slot PoE switch ND-HP1621G Support restrain network storm and easy to use
- 16*10/100Mbps PoE ports, 2*10/100/1000Mbps uplink port，1*1000Mbps SFP Slot
- Support IEEE802.3af/at
- Support restrain network storm, VLAN function
- Support Max Transmission distance up to 250m
- All port supported by MDI/MDIX auto flip and self-negotiation

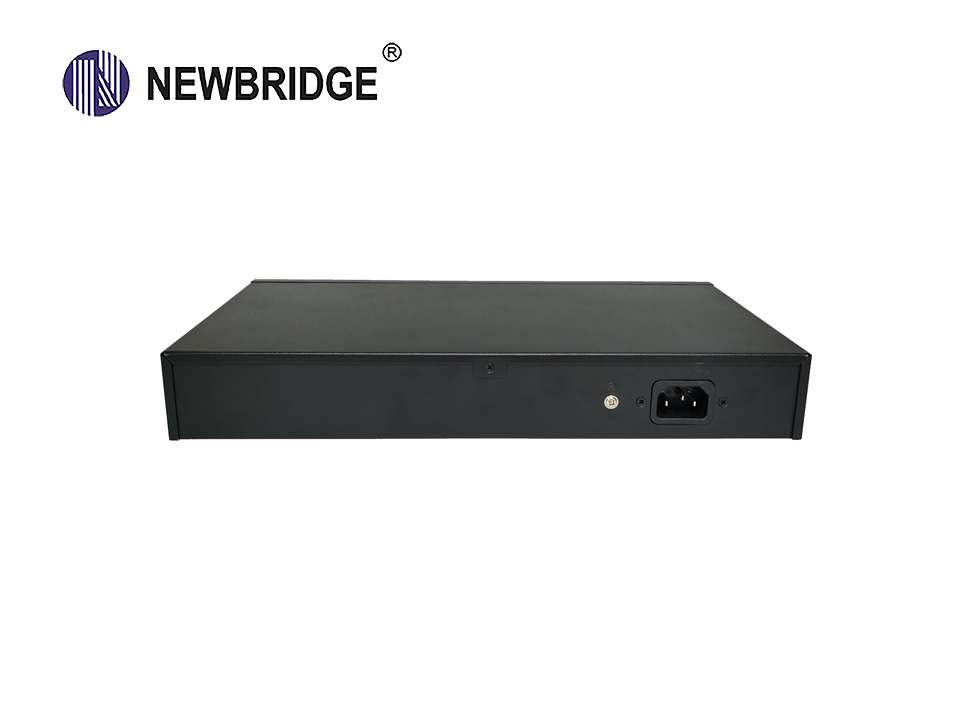

- Built-in power supply
- Maximum power of single PoE port: 30 W
- Whole machine power: 300W
- Adopts store-and-forward architecture
- Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
- Support lightning protection 4KV
| Model | ND-HP1621G | ||
| Chipset | Chip Brands | Chip Model | |
| REALTEK+JLSemi | RTL8367+JL5108 | ||
| Power | Power Adapter Voltage | AC 110V-240V | |
| Consumption | 300W(52V,2.3A) | ||
| Network Connector | Network Port | PoE Ethernet Port | 1～16 Port : 10/100Mbps |
| Ethernet port | Uplink Port : 10/100/1000Mbps | ||
| SFP Port | SFP Port: 1000Mbps | ||
| Transmission Distance | 1～16 Port : 100Mbps:0~100m; 10Mbps: 0~250m; | ||
| Uplink Port : 0 ~ 100m | |||
| SFP: depends on the optical module(20km...100km） | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
| Network Switch | Network Standard | IEEE802.3/802.3u, IEEE802.3x,IEEE802.ab | |
| Switching Capacity | 9.2Gbps | ||
| Packet buffer memory | 1Mbits | ||
| Throughput | 6.8448Mpps | ||
| MAC Table | 2K | ||
| Paket Forwarding Rate | 10Mbps:14880pps/port 100Mbps:148800pps/port 1000Mbps:1488000pps/port | ||
| Power Over Ethernet | PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | 12 + ,36 - , 4 core power supply | ||
| PoE Power | af=15.4W,at=30W | ||
| RJ45 port | Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode | |
| LED Indicator | LED Indicator | LINK/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender | |
| Environmental | Working temperature | 0℃~55℃ | |
| Relative Humidity | 20~95% | ||
| Storage temperature | -20℃~70℃ | ||
| Mechanical | Dimension (L×W×H) | 310mm*183mm*45mm | |
| Color | Black | ||
| Weight | 2.06kg | ||
Ordering Models
ND-HP1621G 16 port PoE switch with 16*10/100M bit PoE ports,2*10/100/1000M Uplink Port and 1*1000Mbps SFP Slot ,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps),300W power supply
Shipping & Lead Time
Sample Order: 1-3 business days via DHL/FedEx/UPS.
Bulk Order: 7-15 business days depending on quantity.
OEM/ODM: 25-35 business days including custom packaging.
MOQ: 10 units for standard models; 100 units for OEM branding.
Port: FOB Shenzhen / Hong Kong.
