FEATURES
16*10/100/1000Mbps PoE ports, 2*10/100/1000Mbps uplink port ，1*1000Mbps SFP Slot
Support IEEE802.3af/at
Support restrain network storm, VLAN function
Support Max Transmission distance up to 250m with PoE Power
Support A I self-healing mode（Watchdog function）
The toggle horse can be switched at will without power
All port supported by MDI/MDIX auto flip and self-negotiation
Built-in power supply;
Maximum power of single PoE port: 30 W
Maximum PoE power: 300W
Adopts store-and-forward architecture
Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
Support lightning protection 4kV

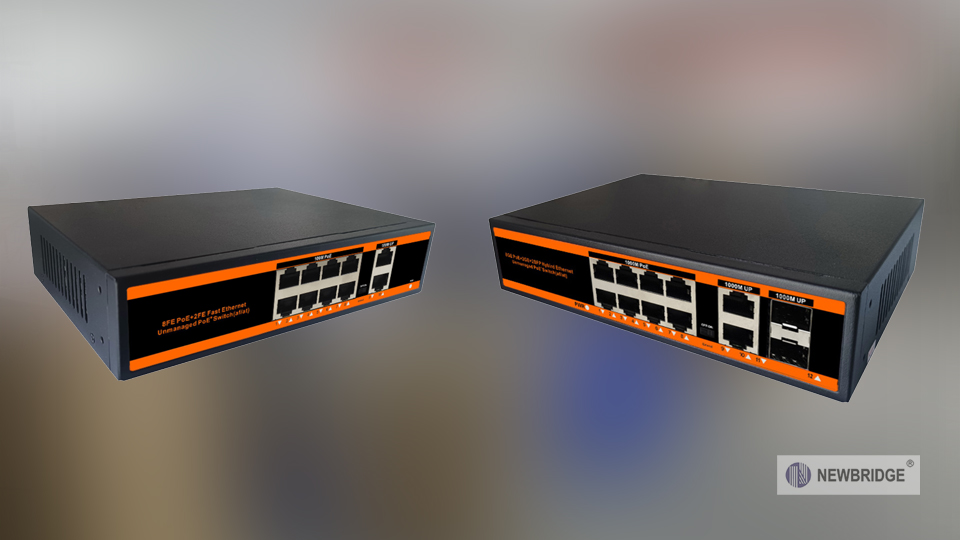

Newbridge®The 16-port 10/100/1000Mbps AI PoE switch provides seamless data connectivity for 10/100/1000Mbps Ethernet and PoE power for powered devices such as network surveillance cameras and wireless (AP).
The switch has 16* 10/100/1000Mbps PoE+ ports + 2* 100/1000Mbps uplink ports+ 1 Gigabit SFP ports, where 1-16 100/1000 Mbps downlink power ports all support powering PoE network cameras via UTP Category 5 and above unshielded twisted pair cables. 16 10/100/1000 Mbps adaptive RJ45 downlink ports all support 802.3af/at standard PoE power supply. Support priority mechanism, when the remaining power is insufficient, the power supply of the high priority port is guaranteed first to avoid overloading the equipment. The maximum PoE output power of the whole machine is 300W, and the maximum power supply power of individual ports is 30W.
The 16 ports of Power over Ethernet can achieve A I self-healing function (watchdog function) by toggling any dial horse switch in the case of non-stop power, 250m long distance + VLAN isolation mode ，which automatically detects the data communication status in real time. When a port communication fault occurs, the corresponding port restarts automatically to recover the network communication and avoid manual maintenance.The Value lies in help to build the AI intelligent security transmission ecosystem.
Users can easily understand the working status of the device through the power indicator and status indicator of each port, plug-and-play, no configuration required, simple and convenient.
Model | ND-APG1621 |
Fixed Port | 16*10/100/1000Base-TX PoE ports (Data/Power) 2*10/100/1000Base-TX uplink RJ45 port (Data) 1*1000Mbps SFP S lot |
Ethernet Port | Port 1-16 support 10/100/1000Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
Function Switch |
1 (1,2) two-position dip switch, the default state "OFF", "ON" after opening the function description as follows. |
1 is the "ON" state, port 1-16 can support A I self-healing (modewatchdog function); when"OFF", no communication self-healing function. | |
2 is the "ON" state, port 1-16 can support long-distance transmission 10M/250m+VLAN transmission mode,when "OFF", 100 meters transmission. | |
Network Protocol | IEEE802.3 10BASE-T； IEEE802.3i 10Base-T； IEEE802.3u 100Base-TX； IEEE802.3ab 1000Base-T； IEEE802.3z 1000Base-X； IEEE802.3x |
Forwarding Mode | Store and Forward(Full Wire Speed) |
Switching Capacity | 38Gbps |
Forwarding Rate@64byte |
28.272Mpps |
MAC | 8K |
Buffer Memory | 4M |
Twisted pairTransmission |
10BASE-T ： Cat3,4,5 UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(≤100 meter) |
PoE Port | Port 1 to 16 IEEE802.3af/at @ POE |
Power Supply Pin | 1/2/ 3/6 (+), 4/5/7/8(-) 8 cores supply power |
Single-port Max Power |
30W ，IEEE802.3af/at |
Total PWR/ Input Voltage |
300W （52VDC） |
Power Supply | External power adapter,AC100~240V 50-60Hz 1A |
Power Consumption | Standby<4W, Full load<300W |
Operation TEMP/Humidity |
-20°C+55°C, 5%~90% RH Non condensing |
Storage TEMP/Humidity |
-40°C+75°C, 5%~95% RH Non condensing |
Dimension (L*W*H) | 310mm*183mm*45mm |
Weight | 2.06kg |
Installation | Desktop.Wall-mounted |
Lightning protection / protection level |
Port lightning protection: 4KV 8/20us, Protection level: IP30 |
