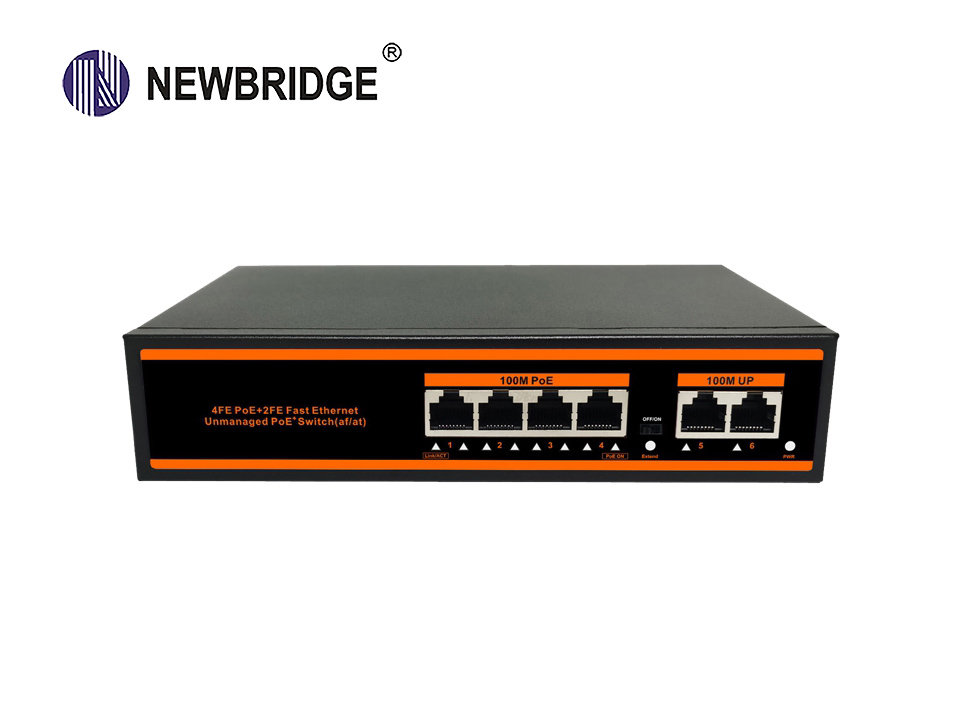

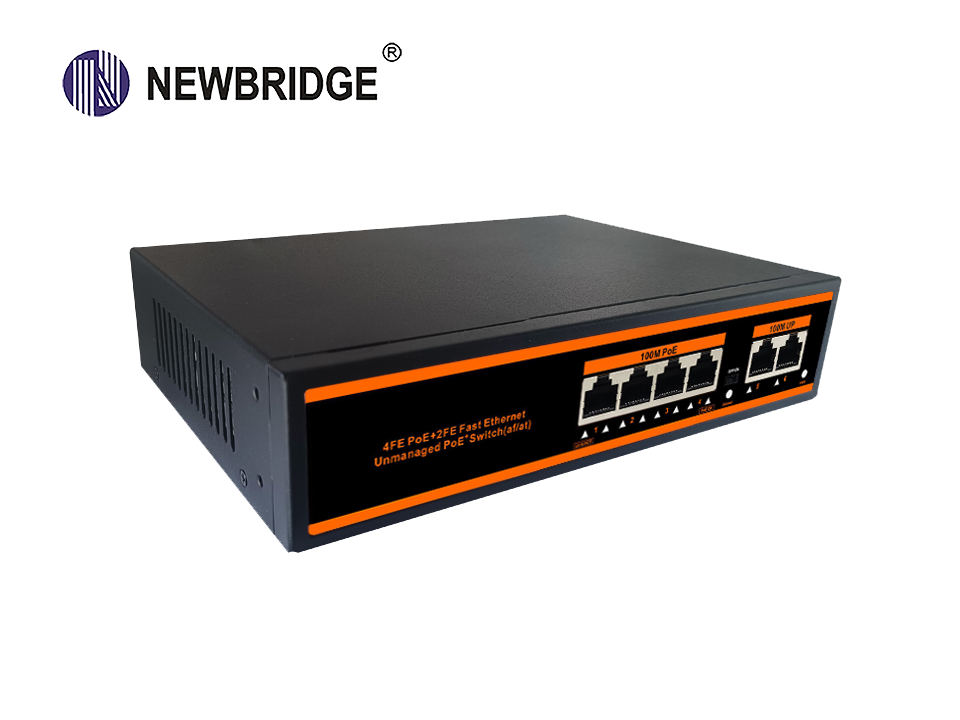

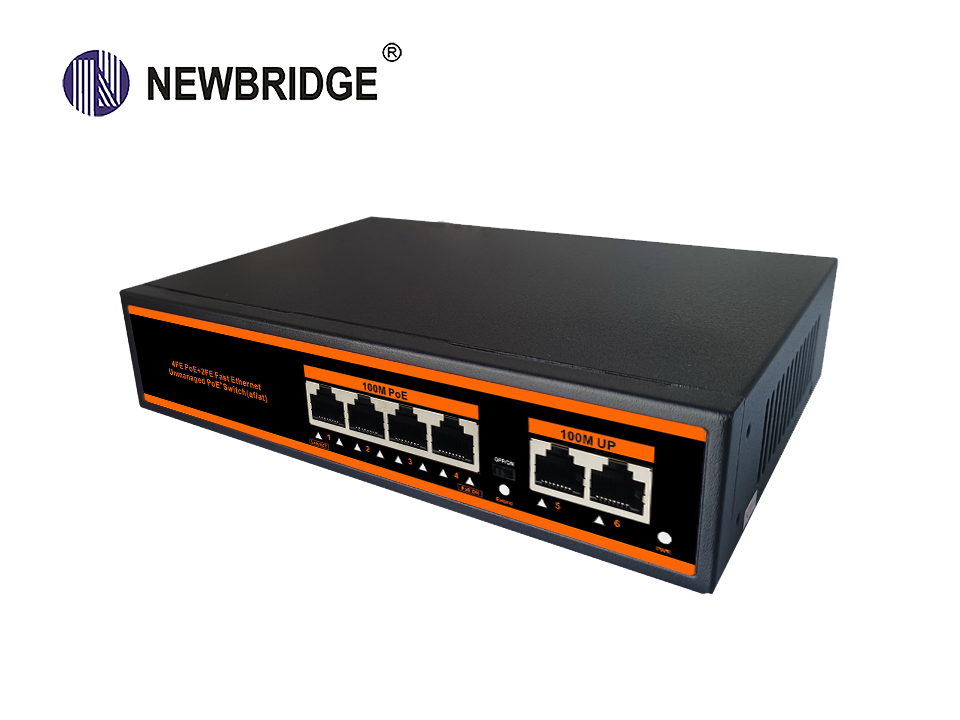

4 port PoE 10/100Mbps+2 LAN 10/100Mbps stantard PoE switch Support IEEE802.3af/at and high reliability

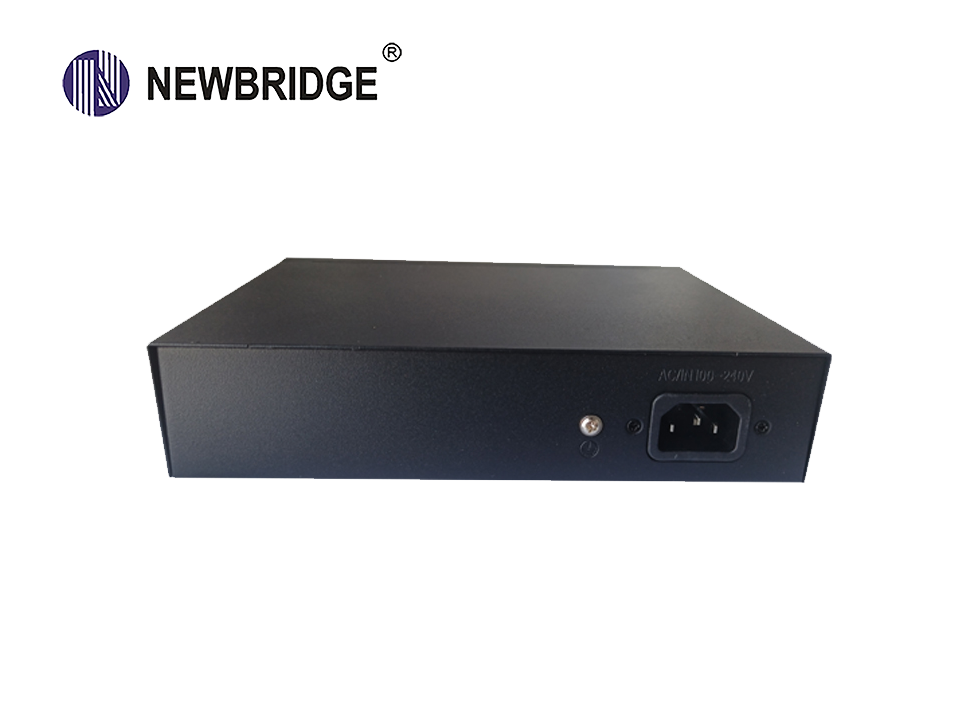

| Power | Power Adapter Voltage | AC 110V-240V | |
| Consumption | 65W/78W | ||
|
Network Connector | Network Port | PoE Ethernet Port | 1～4 Port : 10/100Mbps |
| Ethernet port | Uplink Port : 10/100Mbps | ||
|
Transmission Distance |
1～4 Port : 100Mbps:0~100m; 10Mbps: 0~250m; | ||
| Uplink Port : 0 ~ 100m | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
|
Network Switch | Network Standard |
IEEE802.3/802.3u, IEEE802.3x, IEEE802.ab | |
| Switching Capacity | 1.2Gbps | ||
| Packet Buffer Memory | 1Mbits | ||
| Throughput | 0.8928Mpps | ||
| MAC Table | 1K | ||
|
Packet Forwarding rate | 10Mbps:14880pps/port 100Mbps: 148800pps/port | ||
|
Power Over Ethernet | PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | 12+ ,36 - , 4 core power supply | ||
| PoE Power | af=15.4W,at=30W for each port | ||
|
RJ45 port |
Port Function |
Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode | |
|
LED Indicator |
LED Indicator |
LINK/ACT.100Mbps; PoE Status Indicator; Power indicator;Extender | |
|
Environmental | Working temperature | 0℃~55℃ | |
| Relative Humidity | 20~95% | ||
| Storage temperature | -20℃~70℃ | ||
|
Mechanical | Dimension (L×W×H) | 220mm*140mm*45mm | |
| Color | Black | ||
| Weight | 0.95kg | ||
Ordering Models

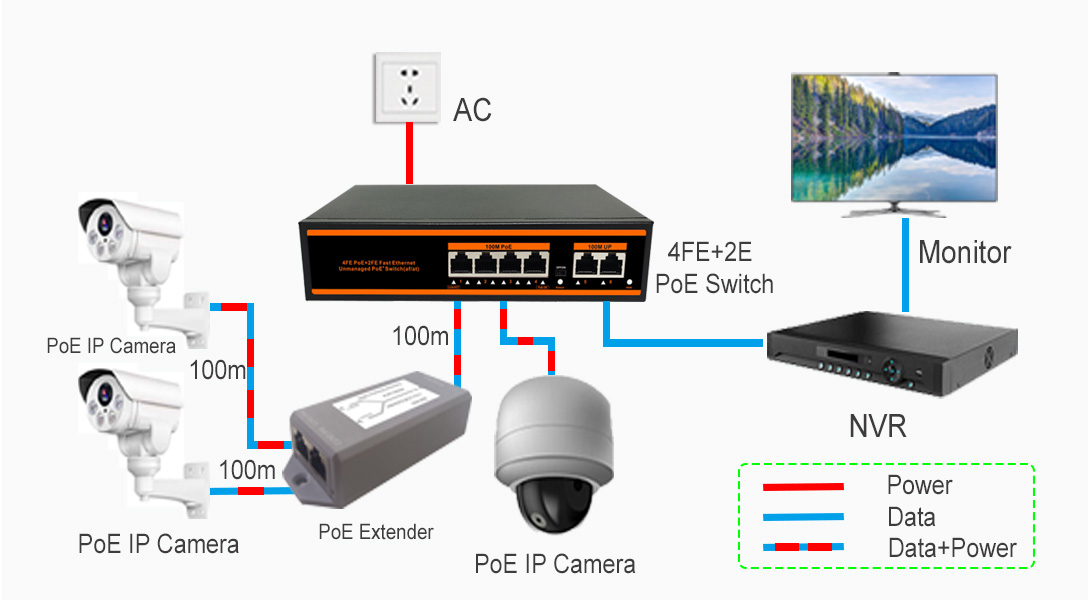

ND-HP0420 6 port switch with 4*10/100M bit PoE ports2*10/100M Upli<x>nk Port PoE Standard: IEEE 802.3af/at PoE data & power transmission distance 100meters(100Mbps)250meters(10Mbps)
Shipping & Lead Time
Sample Order: 1-3 business days via DHL/FedEx/UPS.
Bulk Order: 7-15 business days depending on quantity.
OEM/ODM: 25-35 business days including custom packaging.
MOQ: 10 units for standard models; 100 units for OEM branding.
Port: FOB Shenzhen / Hong Kong.
