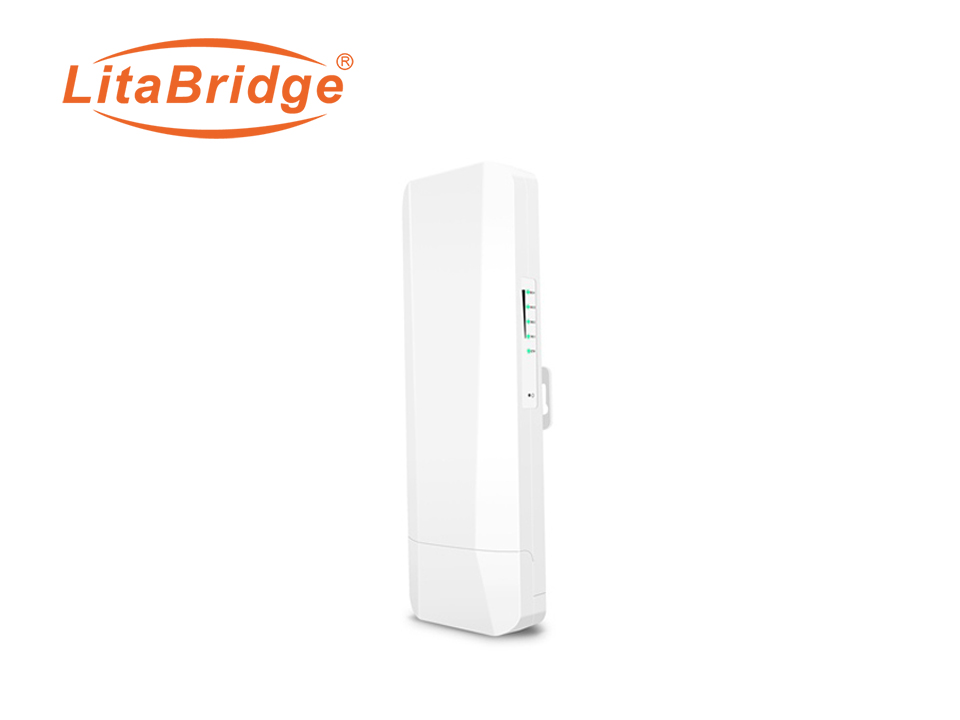

Newbridge®ND-N740 is a high-performance enterprise-class outdoor bridge product that works in the 5G frequency band and supports 802.11ac technology.
Unique digital tube pairing technology, without computer configuration, easily complete the pairing of point-to-point and point-to-multipoint (within 8 o'clock) devices. 100M network interface, 5G 802.11ac wireless processing speed up to 450Mbps.
The power supply mode is flexible, supporting 24V PoE network cable power supply and 12V 1A DC local power supply, and the network cable power supply distance can reach 50-70 meters (depending on the network cable material). It adopts outdoor IP65 windproof, rainproof, dustproof and sun protection grade shell design, which can easily adapt to various harsh outdoor environments. Built-in 14dBi high-gain, wide-angle directional plate antenna, easy and quick installation. It has the characteristics of high performance, high gain, high receiving sensitivity, high bandwidth, etc., which greatly enhances the wireless transmission performance and stability, and is widely used in medium and short distance video transmission and data transmission.
Super cost-effective hardware configuration
Enterprise-level main control chip, industrial-level circuit design, support IEEE802.11a/n/ac protocol, can provide 450Mbps wireless access speed and 10/100Mbps Ethernet switching processing speed. The excellent anti-high and low temperature design fully guarantees the real-time, long-term, stable and high-efficiency transmission of user network data in extreme environments, and improves user experience.
Powerful wireless transmission capability
The circuit design with high power and high receiving sensitivity, coupled with a high-gain directional plate antenna, greatly enhances the wireless transmission distance and improves the performance and stability of wireless transmission.
Simple and efficient pairing
No need for network expertise, no need for computer operation, easily dial the code and adjust the master and slave device digital tubes to the same value to complete the point-to-point, point-to-multipoint (within 8 points) pairing work.
Flexible power supply
The device not only supports the power supply mode of PoE remote network cable power supply, but also supports the power supply mode of 12V 1A DC locally connected power supply, which can meet the needs of various scenarios, reduce construction costs, and flexibly select power supply methods.
Stylish and compact, easy to install
The appearance is stylish and compact, and the installation method is flexible and simple. It has a wall-mounted and pole-mounted fixed installation method. On the basis of not affecting the original design, it greatly reduces the difficulty of construction for construction personnel and improves construction efficiency.
A clear overview of the equipment
Log in to the device through a WEB browser to view the connection system status, bridge status, and interface status information in real time. The simple and clear interface allows users to know the working status of the device in real time.
Fool-style quick setup & powerful wireless optimization
Users do not need to understand too much wireless knowledge, do not need too much professional knowledge, and can realize the pairing of point-to-point and point-to-multipoint (within 8 points) devices in a few simple steps. Simple settings can complete wireless optimization, and easily improve link transmission quality and use effect.
Protect users' network security at all times
The bridge signal of the equipment adopts the advanced WPA-PSK&WPA2-PSK encryption strategy, and the bridge signal is hidden by default to protect the user's network from hacker attacks and ensure the user's data security.
Simple and efficient system configuration function
Network time synchronization, access password modification, local backup/restore settings, factory reset, local/online upgrade, immediate/timed restart, simple and clear functions allow you to easily complete the system settings of the device and improve the robustness of the device.
Hardware Configuration | |
Model | ND-N740 |
Main chip | MTK7628KN+7610E 450Mbps High-performance enterprise chip |
Main frequency | 580MHz MIPS® 24KEc™ CPU |
Wireless technology | 5G:450M 802.11a/n/ac 1T1R Technology |
Memory | 1MB DDR RAM |
Flash | 8MB |
Network Interface | WAN: 1*10/100Mbps adaptive RJ45 network interface LAN: 1*10/100Mbps adaptive RJ45 network interface |
Button | 1*Digital switch/reset button, short press the digital tube to display the value plus one, long press for 5 seconds to restore factory settings. Master-slave dial switch: master is access point mode, slave is client mode. |
Indicator light | Signal SIG indicator, ETH network interface status indicator, power indicator, system indicator, digital tube indicator |
Power supply | 24V 1A non-standard PoE power supply; DC 12V 1A, power consumption <10W |
Working environment | Temperature: -30℃～+55℃(work), -40℃～+70℃(storage) Humidity (non-condensing): 10% to 90% (working), 5% to 95% (storage) |
Product Size | 285mm*98mm*98mm |
Product weight | N/A |
Sky line | Built-in high-gain 14dBi directional plate antenna (half angle of horizontal wave 60°, half angle of vertical wave 15°) |
RF characteristics | |
Frequency Range | ISM band: 4.900GHz ~ 5.850GHz |
Channel distribution | 5G：36、40、44、48、52、56、60、64、100、104、108、112、116、120、124、128、132、136、140、149、153、157、161、165 |
Modulation | OFDM = BPSK,QPSK,16-QAM,64-QAM,256-QAM;DSSS = DBPSK,DQPSK,CCK |
Output Power | 11a @54M:20±2dB, @6M:23±2Db 11n 20MHz：@MCS9:23±2dB, @MCS0:23±2dB 11n 40MHz：@MCS9:20±2dB, @MCS0:23±2dB 11ac 40MHz @MCS9:20±2dB, @MCS0:23±2dB 11ac 80MHz @MCS9:20±2dB, @MCS0:23±2Db |
Receiving sensitivity | 11a: ＜-72dbm@54Mbps, ＜-89dbm@6Mbps 11n 20MHz: ＜-71dbm@MCS8, ＜-89dbm@MCS0 11ac 40MHz：＜-66dbm@MCS9, ＜-84dbm@MCS0 11ac 80MHz: ＜-63dBm@MCS9 ＜-81dBm@MCS0 |
EVM | 802.11n: ≤-28 dB 802.11a: ≤-25 dB |
Frequency deviation | ＜±20ppm |
Software features | |
Operating mode | Master AP (Bridge Access Point), Slave AP (Bridge Client), switch by DIP switch |
Networking method | Point-to-point, point-to-multipoint (within 8 points) |
Management method | Chinese WEB remote management |
Bridge configuration | Wireless mode: switch between bridge access point and bridge client Bridge access point: Bridge SSID, encryption method (WPA2-PSK, WPA-PSK, no encryption), bridge password, wireless protocol, Wireless bandwidth, wireless channel, wireless power (100%, 75%, 50%, 25%, 10%, 5%) Bridge client: Bridge SSID, encryption method (WPA2-PSK, WPA-PSK, no encryption), bridge password, Remote MAC address lock, wireless channel, wireless power (100%, 75%, 50%, 25%, 10%, 5%) |
Internet | Static IP/dynamic acquisition |
Wireless management | Bridge configuration/advanced configuration/WiFi settings |
System | Login password modification, factory restoration, local upgrade |
