8 prot PoE switch 10/100Mbps+2*1Gbps Lan 1*1Gbps SFP,120W ND-HP0821G standard PoE switch
8 prot PoE switch 10/100Mbps+2*1Gbps Lan 1*1Gbps SFP,120W ND-HP0821G standard PoE switch_10M/100M PoE Switch_Litabridge
NewbridgeND-HP0821Gseries PoE switch is designed by NEWBRIDGE for meeting the demand of PoE power supply. It adopts the latest high-speed Ethernet switching chip and ultra-high backplane bandwidth design, with extremely fast data processing

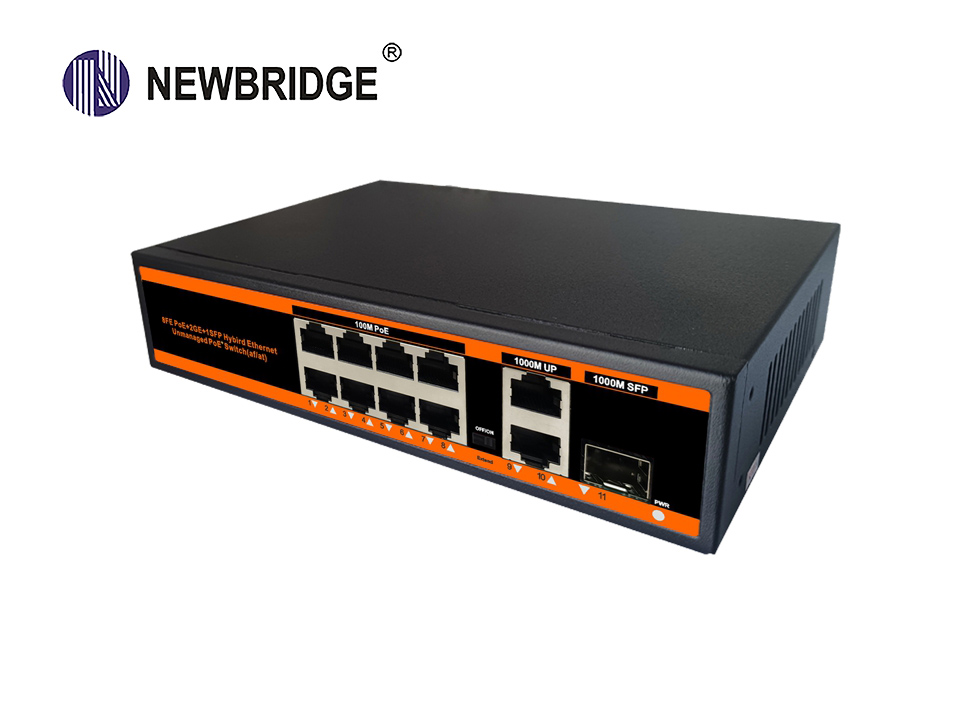

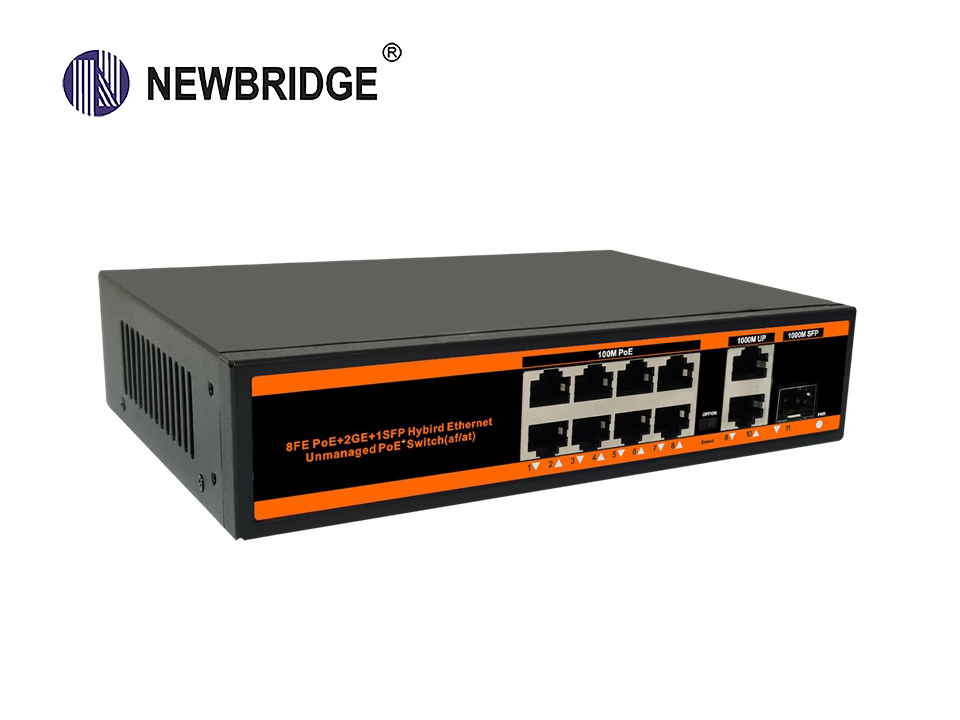

Newbridge®ND-HP0821G series PoE switch is designed by NEWBRIDGE for meeting the demand of PoE power supply. It adopts the latest high-speed Ethernet switching chip and ultra-high backplane bandwidth design, with extremely fast data processing capability to improve smooth data transmission performance. It has 8 PoE-powered RJ45 ports, 2 RJ45 uplink ports and an independent SFP expansion slot. All of eight RJ45 ports support IEEE 802.3af/at standard , with a maximum power supply of 30W for a single port and 120W&150W for the whole machine, which can automatically detect and identify the powered devices that comply with IEEE 802.3af/at standard and supply power for the priority mechanism through the network cable.

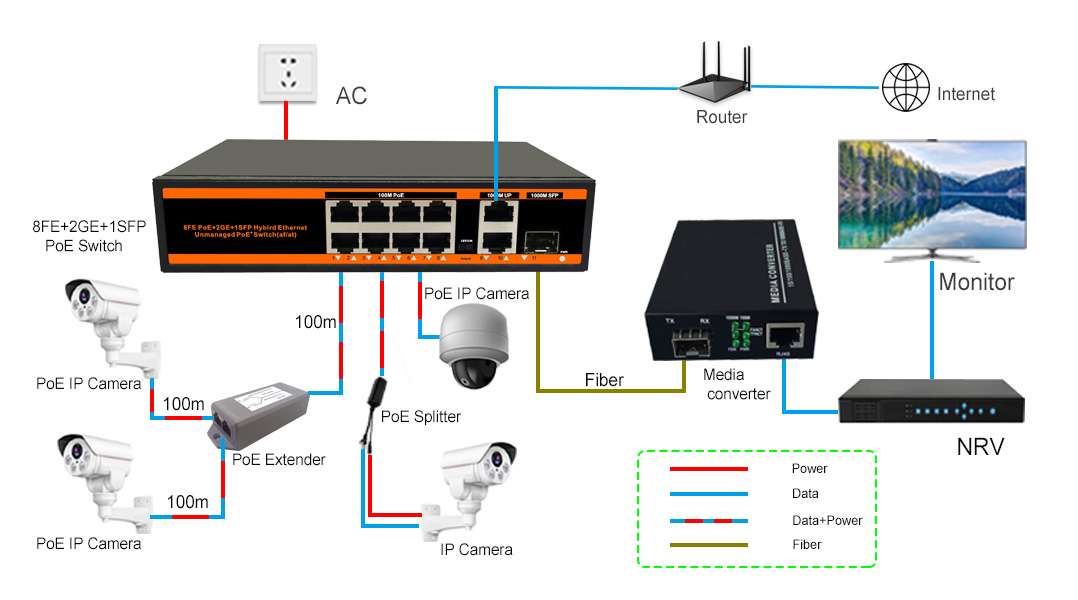

With simple and convenient installation and maintenance means and rich service features, it helps users to build a safe and reliable high-performance network. It is mainly positioned at the core or convergence layer of user networks such as industrial parks, buildings, factories and mines, government agencies, and community broadband; it can be widely used in Ethernet access scenarios such as SMEs, Internet cafes, hotels, and schools.
FEATURES
- 8*10/100Mbps PoE ports, 2*10/100/1000Mbps uplink port，1*1000Mbps SFP Slot
- Support IEEE802.3af/at
- Support restrain network storm, VLAN function
- Support Max Transmission distance up to 250m
- All port supported by MDI/MDIX auto flip and self-negotiation
- Built-in power supply
- Maximum power of single PoE port: 30 W
- Maximum PoE power: 120W&150W
- Adopts store-and-forward architecture
- Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
- Support lightning protection 4KV
| Item | Description | ||

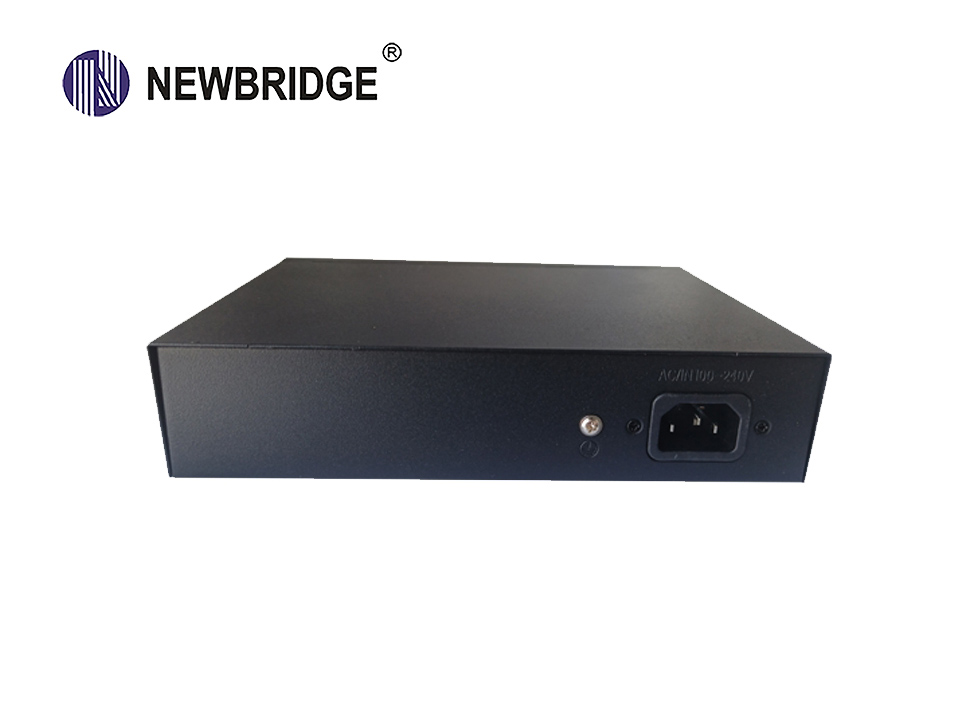

| Power | Power Adapter Voltage | AC 110V-240V | |
| Consumption | 120W/150W | ||
| Network Connector | Network Port | PoE Ethernet Port | 1～8 Port : 10/100Mbps |
| Ethernet port | Uplink Port : 10/100/1000Mbps | ||
| SFP Port | SFP Port: 1000Mbps | ||
| Transmission Distance | 1～8 Port : 100Mbps:0~100m; 10Mbps: 0~250m; | ||
| Uplink Port : 0 ~ 100m | |||
| SFP: depends on the optical module(20km...100km） | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
| Network Switch | Network Standard | IEEE802.3/802.3u, IEEE802.3x,IEEE802.ab | |
| Switching Capacity | 5.6Gbps | ||
| Packet buffer memory | 1Mbits | ||
| Throughput | 4.1664Mpps | ||
| MAC Table | 2K | ||
| Paket Forwarding Rate | 10Mbps:14880pps/port 100Mbps:148800pps/port 1000Mbps:1488000pps/port | ||
| Power Over Ethernet | PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | 12 + ,36 - , 4 core power supply | ||
| PoE Power | af=15.4W,at=30W | ||
| RJ45 port | Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode | |
| LED Indicator | LED Indicator | LINK/ACT.100Mbps;PoE Status Indicator; Power indicator;Extender | |
| Environmental | Working temperature | 0℃~55℃ | |
| Relative Humidity | 20~95% | ||
| Storage temperature | -20℃~70℃ | ||
| Mechanical | Dimension (L×W×H) | 220mm*140mm*45mm | |
| Color | Black | ||
| Weight | 1.05kg | ||
Ordering Models
ND-HP0821G 11 ports switch with 8*10/100M bit PoE ports,2*10/100/1000M Uplink Port and 1*1000Mbps SFP Slot ,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps),optional power supply 120W or 150W
Shipping & Lead Time
Sample Order: 1-3 business days via DHL/FedEx/UPS.
Bulk Order: 7-15 business days depending on quantity.
OEM/ODM: 25-35 business days including custom packaging.
MOQ: 10 units for standard models; 100 units for OEM branding.
Port: FOB Shenzhen / Hong Kong.
How to Order
1. Click the "Send Enquiry" button above or email info@cnnewbridge.com with your required model and quantity.
2. Our sales team will provide a quotation within 24 hours, including pricing, shipping cost, and estimated delivery time.
3. Confirm the proforma invoice (PI) and arrange payment via T/T, Western Union, or PayPal.
4. Production and quality inspection followed by shipment with tracking number provided.
