AI PoE Switch

FEATURES

8*10/100/1000Mbps PoE ports,

2*10/100/1000Mbps uplink port ，1*1000Mbps SFP Slot

Support IEEE802.3af/at

Support restrain network storm, VLAN function

Support Max Transmission distance up to 250m with PoE Power

Support A I self-healing mode（Watchdog function）

The toggle horse can be switched at will without power

All port supported by MDI/MDIX auto flip and self-negotiation

Built-in power supply;

Maximum power of single PoE port: 30 W

Maximum PoE power: 120W

Adopts store-and-forward architecture

Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall

Support lightning protection 4kV

Newbridge®The   8-port   10/100/1000Mbps   AI   PoE   switch   provides   seamless   data   connectivity   for 10/100/1000Mbps Ethernet and PoE power for powered devices such as network surveillance cameras and wireless (AP).

The switch has 8* 10/100/1000Mbps PoE+ ports + 2* 100/1000Mbps uplink ports+ 1 Gigabit SFP ports, where 1-8 1000 Mbps downlink power ports all support powering PoE network cameras via UTP Category 5 and above unshielded twisted pair cables. 8 10/100/1000 Mbps adaptive RJ45 downlink ports all support 802.3af/at  standard   PoE  power  supply.       Support   priority  mechanism,  when  the   remaining   power  is insufficient,  the   power  supply  of  the   high   priority  port  is  guaranteed  first  to   avoid   overloading  the equipment. The  maximum  PoE  output  power  of  the  whole  machine  is  120W,  and  the  maximum  power supply power of individual ports is 30W.

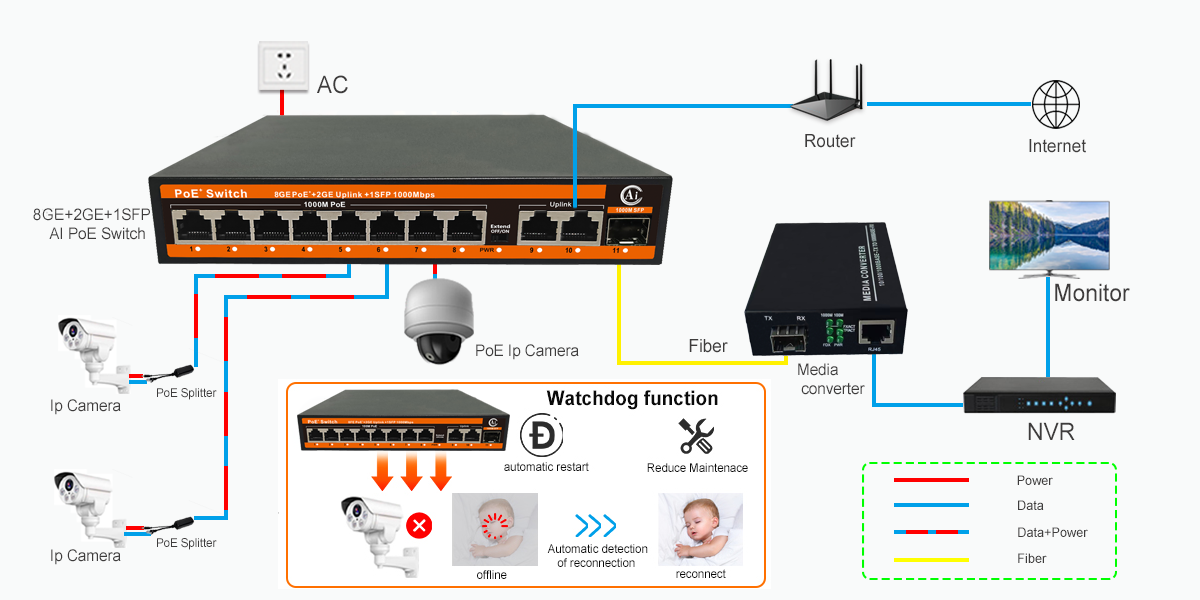

The 8 ports of Power over Ethernet can achieve A I self-healing function (watchdog function) by toggling any dial horse switch in the case of non-stop power, 250m long distance + VLAN isolation mode ，which automatically detects the data communication status in real time. When a port communication fault occurs, the corresponding port     restarts  automatically to  recover the network communication and avoid manual maintenance.The Value lies in help to build the AI intelligent security transmission ecosystem.

Users can easily  understand the working status of the device through the  power  indicator  and  status indicator of each port, plug-and-play, no configuration required, simple and convenient.
