AI PoE Switch

FEATURES

• 8*10/100Mbps PoE ports, 2*10/100Mbps uplink port

• Support IEEE802.3af/at

• Support restrain network storm, VLAN function

• Support Max Transmission distance up to 250m with PoE Power

• Support Watchdog function

• All port supported by MDI/MDIX auto flip and self-negotiation

• Built-in power supply;

• Maximum power of single PoE port: 30 W;

• Maximum PoE power: 120W;

• Adopts store-and-forward architecture;

• Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall

• Support lightning protection 4KV

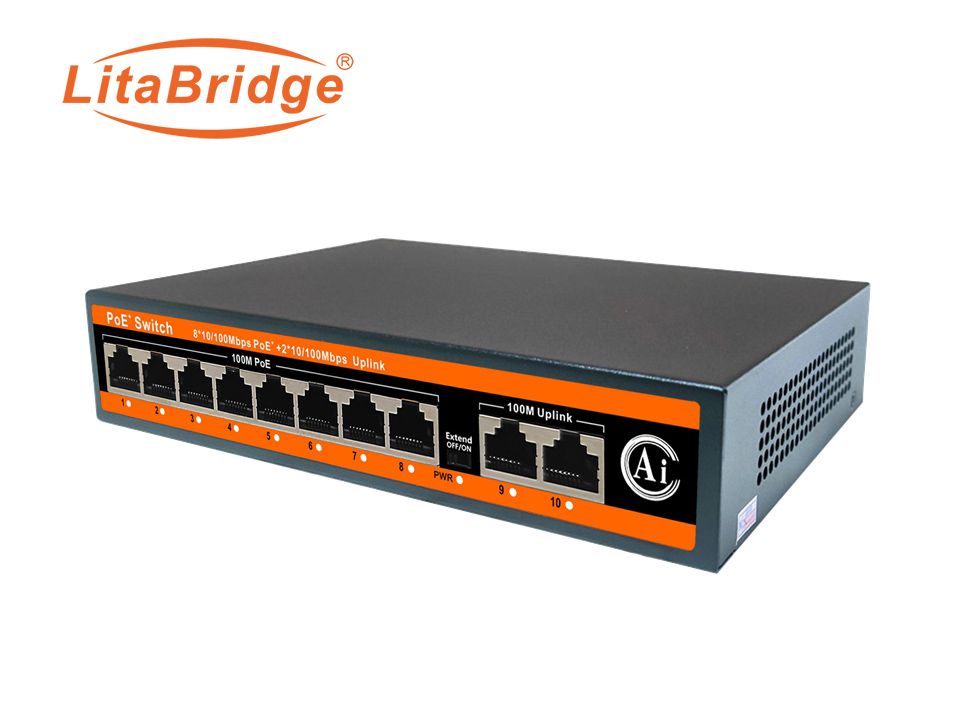

Newbridge®The  8-port  10/100Mbps  unmanaged   PoE  switch  provides  seamless  data  connectivity  for 10/100Mbps  Ethernet  and  PoE  power  for  powered  devices  such  as  network  surveillance  cameras  and wireless (AP).

The switch has 8* 10/100Mbps PoE+ ports + 2* 100Mbps uplink ports, where 1-8 100 Mbps downlink power ports all support powering PoE network cameras via UTP Category 5 and above unshielded twisted pair cables . 8 10/100 Mbps adaptive RJ45 downlink ports all support 802.3af/at standard PoE power supply. Support priority mechanism, when the remaining power is insufficient, the power supply of the high priority port is guaranteed first to avoid overloading the equipment. The maximum PoE output power of the whole machine is 120W, and the maximum power supply power of individual ports is 30W.

The 8  ports of  Power over  Ethernet support watchdog function, which  automatically  detects the data communication  status  in  real  time.  When  a   port  communication  fault  occurs,  the  corresponding  port restarts automatically to recover the network communication and avoid manual maintenance.the Value lies in help to build the AI intelligent security transmission ecosystem.

Users can easily  understand the working status of the device through the  power  indicator  and  status indicator of each port, plug-and-play, no configuration required, simple and convenient.
