- 8*10/100Mbps PoE ports, 2*10/100Mbps uplink port
- Support IEEE802.3af/at
- Support restrain network storm, VLAN function
- Support Max Transmission distance up to 250m
- All port supported by MDI/MDIX auto flip and self-negotiation
- Built-in power supply
- Maximum power of single PoE port: 30 W
- Whole machine power: 120W&150W
- Adopts store-and-forward architecture
- Fanless, natural cooling, small,compact and quiet design, suitable for desktop or wall
- Support lightning protection 4KV
| Power | Power Adapter Voltage | AC 110V-240V | |
| Consumption | 120W/150W | ||
| Network Connector | Network Port | PoE Ethernet Port | 1～8 Port : 10/100Mbps |
| Ethernet port | Uplink Port : 10/100Mbps | ||
| Transmission Distance | 1～8 Port : 100Mbps:0~100m; 10Mbps: 0~250m; | ||
| Uplink Port : 0 ~ 100m | |||
| Transmission Medium | Cat5/5e/6 standard network cable | ||
| Network Switch | Network Standard | IEEE802.3/802.3u, IEEE802.3x,IEEE802.ab | |
| Switching Capacity | 2.0Gbps | ||
| Packet Buffer Memory | 1Mbits | ||
| Throughput | 1.488Mpps | ||
| MAC Table | 1K | ||
| Packet Forwarding rate | 10Mbps:14880pps/port 100Mbps: 148800pps/port | ||
| Power Over Ethernet | PoE Standard | IEEE 802.3af/at | |
| PoE Power Supply | 12 + ,36 - , 4 core power supply | ||
| PoE Power | af=15.4W,at=30W for each port | ||
| RJ45 port | Port Function | Power priority mechanism, fast and forward, MAC automatic learning and aging IEEE802.3X Full-duplex and mode and backpressure for Half-duplex mode | |
| LED Indicator | LED Indicator | LINK/ACT.100Mbps; PoE Status Indicator; Power indicator; Extender | |
| Environmental | Working temperature | 0℃~55℃ | |
| Relative Humidity | 20~95% | ||
| Storage temperature | -20℃~70℃ | ||
| Mechanical | Dimension (L×W×H) | 220mm*140mm*45mm | |
| Color | Black | ||
| Weight | 1.05kg | ||

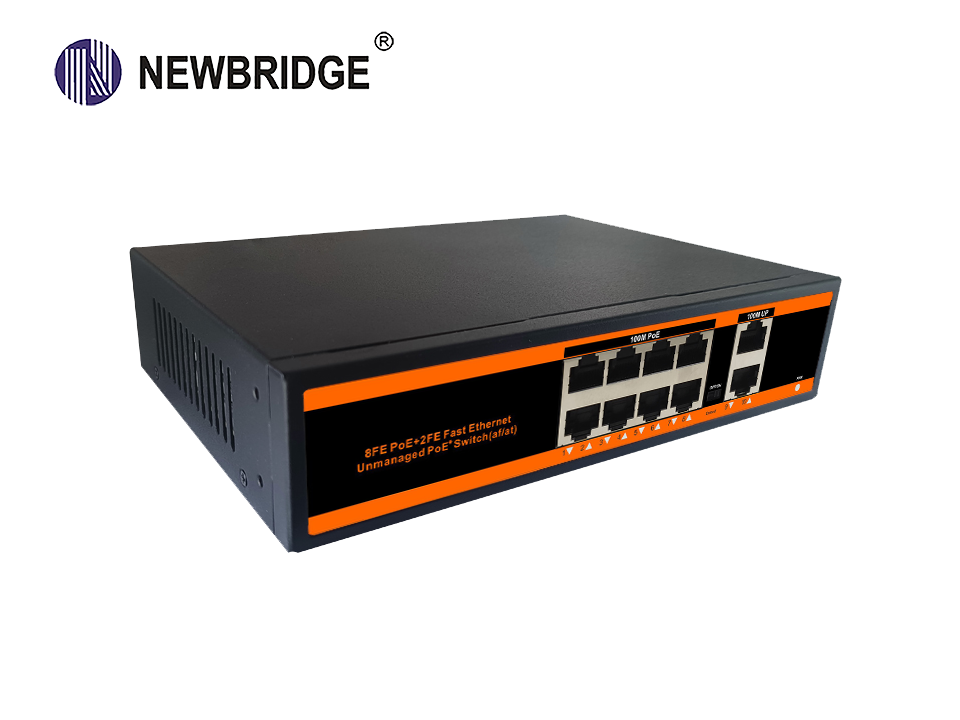

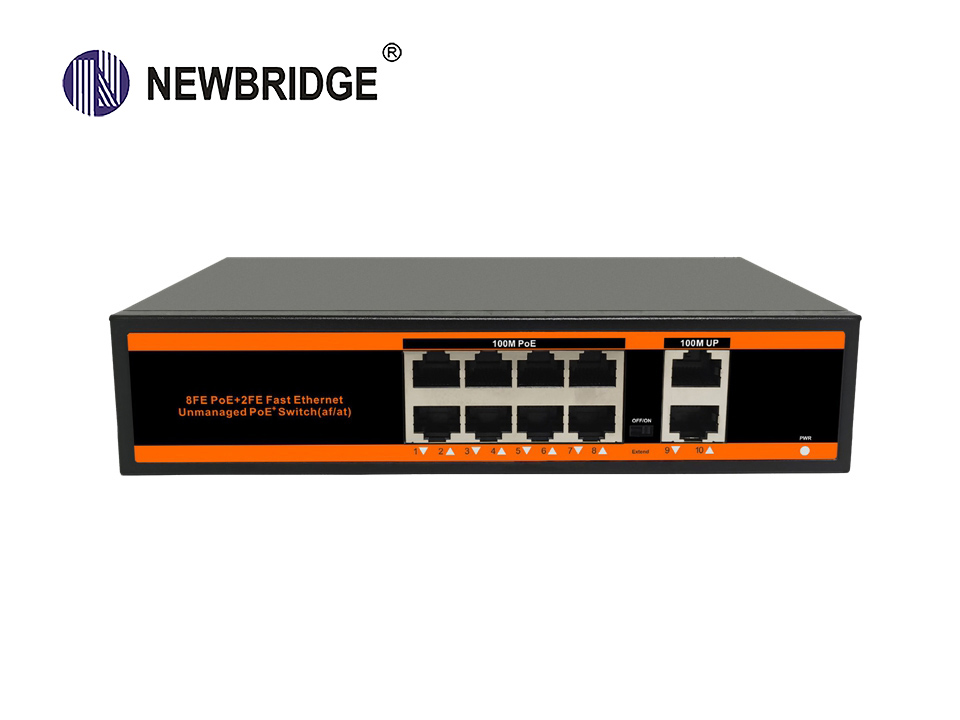

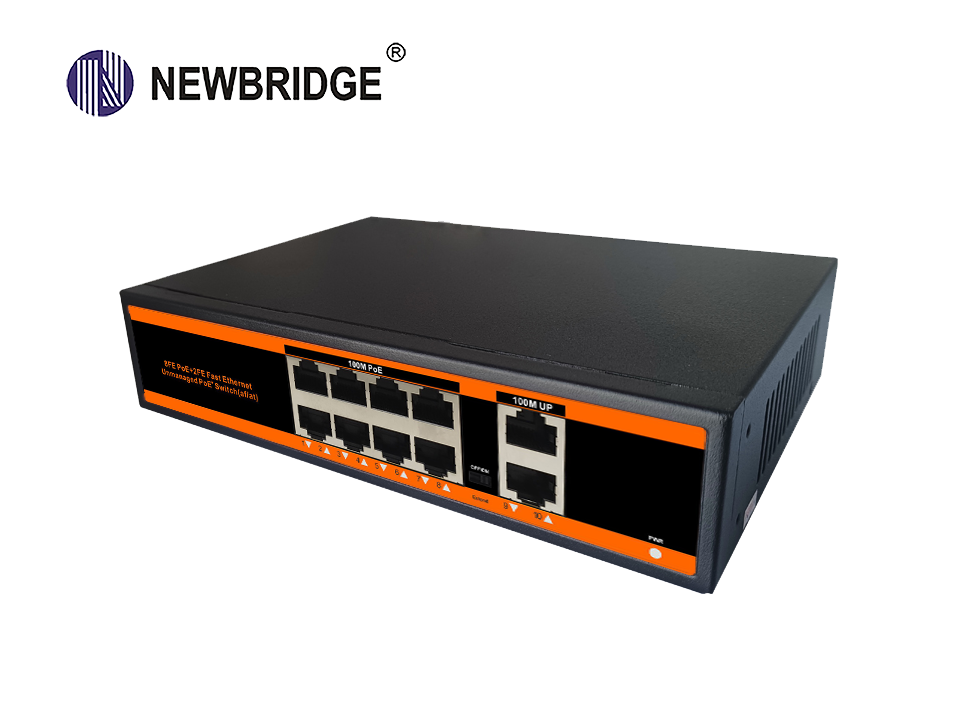

ND-MP0820 10 ports switch with 8*10/100M PoE ports,2*10/100M Uplink Port,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps),optional power supply 120W or 150W
