8 port PoE 10/100Mbps+2 LAN 10_100_1000Mbps,120W ND-FP0820G Non-standard PoE switch
8 port PoE 10/100Mbps+2 LAN 10/100/1000Mbps Non-standard PoE switch - Newbridge
8 port PoE 10/100Mbps Non-standard PoE switch Support IEEE802.3af/at Support restrain network storm
OVERVIEW:

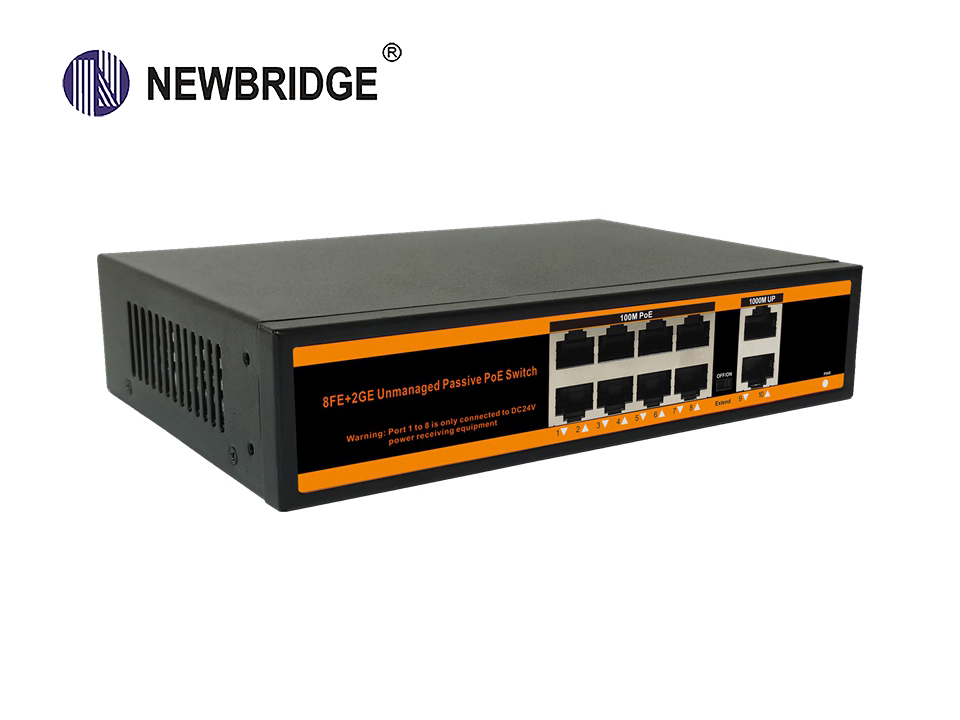

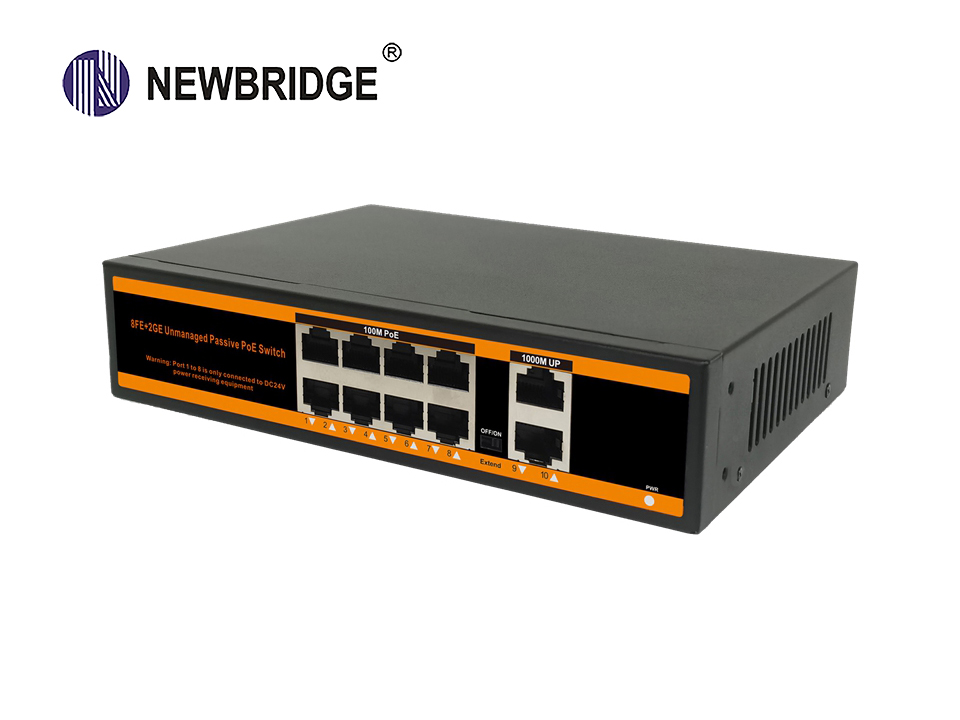

The ND-FP0820G is a non-standard PoE switch independently developed by NEWBRIDGE. It has
8*10/100M PoE ports and 2*10/100/1000M uplink RJ45 ports. Port 1-8 can support 24V non-standard PoE. Single-port PoE power up to 30W. As a non-standard PoE power supply device, it must be connected to the corresponding non-standard electrical equipment (such as a wireless bridge), or the corresponding
non-standard separation line to convert, and then achieve the PoE power supply. It can supply power to
various adaptable terminals through network cables to meet the demand for high density PoE power supply network environment. It is suitable for hotels, campuses, factory dormitories, and small and medium-sized enterprises to establish cost-effective networks.
Unmanaged model, plug and play, no configuration, easy to use.
FEATURE:
10/100Mbps access, Dual RJ45 Uplinkports
◇ Provides 8*10/100M RJ45 ports and 2*10/100/1000M RJ45 ports, which is more convenient for users to flexibly set up to meet the network requirements of various scenarios.
◇ Support non-blocking wire-speed forwarding.
◇ Support full-duplex based on IEEE802.3x and half-duplex based on backpressure.
Intelligent PoE power supply function
◇ 8*10/100Base-TX RJ45 ports can support 24V PoE power supply meeting the needs of security monitoring, teleconferencing system, wireless coverage, and other scenarios.
◇ The maximum PoE output power of single port is 30W.

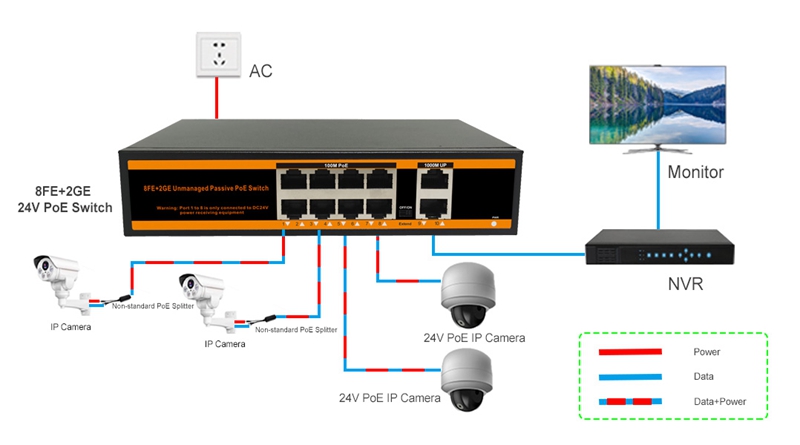

◇ It can quickly realize the power supply function of POE cable through the two ways of switching directly to non-standard electrical equipment or switch and non-standard separation line.
Easy to use
◇ Plug and play, no configuration, simple and convenient.
◇ The user-friendly panel, it can show the device status through the LED indicator of Power, L/A.
◇ With function switch, port 1-8 can support 10M/250m transmission and video surveillance mode when turned on.
Stable and reliable
◇ CCC,CE, FCC, RoHS.
◇ Low power consumption, galvanized steel casing, No fan.
◇ Self-developed power supply, high redundancy design, providing a long term and stable PoE power output.
Model | ND-FP0820G |
Fixed Port |
8*10/100Base-TX PoE ports (Data/Power) 2*10/100/1000Base-TX uplink RJ45 Ports (Data) |
Ethernet Port | 10/100Base-T(X) auto-sensing, full/half duplex MDI/MDI-X self-adaption |
Function Switch (EXTEND) |
Port 1-8support port VLAN and 10M/250m transmission |
Network Protocol | IEEE802.3 10BASE-T, IEEE802.3i 10Base-T IEEE802.3u 100Base-TX, IEEE802.3x |
Forwarding Mode | Store and Forward(Full Wire Speed) |
Switching Capacity | 5.6Gbps |
Forwarding Rate@64byte |
4. 1664Mpps |
MAC | 8K |
Buffer Memory | 2M |
Twisted pairTransmission | 10BASE-T ： Cat5 or later UTP(≤250 meter) 100BASE-TX ： Cat5 or later UTP(≤100 meter) |
PoE Port | Port 1-8 can support 24V PoE |
Power Supply Pin | Default 4/5(+), 7/8(-) |
Single-port Max/AVG Power |
30W/15W |
Total PWR/ Input Voltage |
120W/ (AC100-240V) |

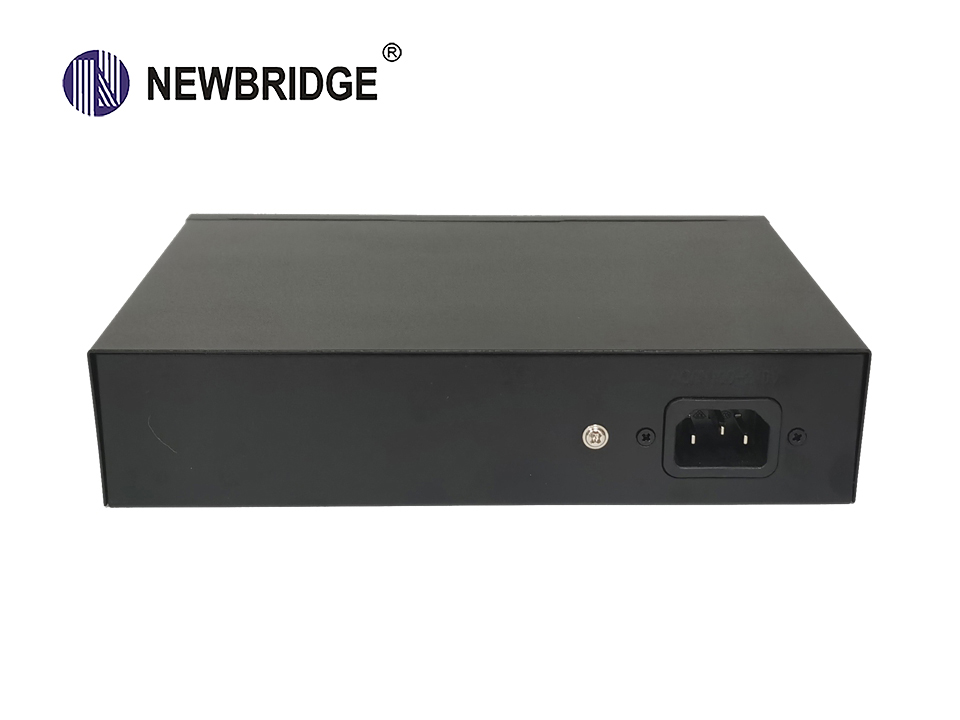

Power Supply | External power adapter,AC100~240V 50-60Hz 2A |
Power Consumption | Standby<5W, Full load<120W |
LED Indicator | Power: PWR (Green), Network:L/A (Green), Function switch: EXTEND (Green) |
Operation TEMP/Humidity |
-20°C+55°C, 5%~90% RH Non condensing |
Storage TEMP/Humidity | -40°C+75°C, 5%~95% RH Non condensing |
Dimension (L*W*H) | 220mm*140mm*45mm |
Weight | 1.05kg |
Installation | Desktop.Wall-mounted |
Lightning protection / protection level |
Port lightning protection: 2KV 8/20us, Protection level: IP30 |
Warranty | 1 years, lifelong maintenance |
Ordering Models
ND-FP0820G 10-port switch with 8*10/100M bit PoE 2*10/100/1000M Uplink Port ,PoE Standard: IEEE 802.3af/at,PoE data & power transmission distance 100meters(100Mbps),250meters(10Mbps), optional power supply 120W or 150W
Shipping & Lead Time
Sample Order: 1-3 business days via DHL/FedEx/UPS.
Bulk Order: 7-15 business days depending on quantity.
OEM/ODM: 25-35 business days including custom packaging.
MOQ: 10 units for standard models; 100 units for OEM branding.
Port: FOB Shenzhen / Hong Kong.
How to Order
1. Click the "Send Enquiry" button above or email info@cnnewbridge.com with your required model and quantity.
2. Our sales team will provide a quotation within 24 hours, including pricing, shipping cost, and estimated delivery time.
3. Confirm the proforma invoice (PI) and arrange payment via T/T, Western Union, or PayPal.
4. Production and quality inspection followed by shipment with tracking number provided.
