FEATURES
Divide one high-definition video source into four channels, two of them can transmit over a single CAT6 cable up to 50 meters；
Support video resolution up to 1920*1080@60Hz, 3D signal；
Support EDID copy function, can match many kinds of display device；
Support bidirectional 20-60KHz IR；
Support POC function；
Compliance with HDMI 1.3 and HDCP 1.2 standard
High compatibility, can auto-match source and display device
Built-in automatic adjustment system, make the image smooth, clear and stable；
Built-in ESD protection system；
Easy to install, plug and play

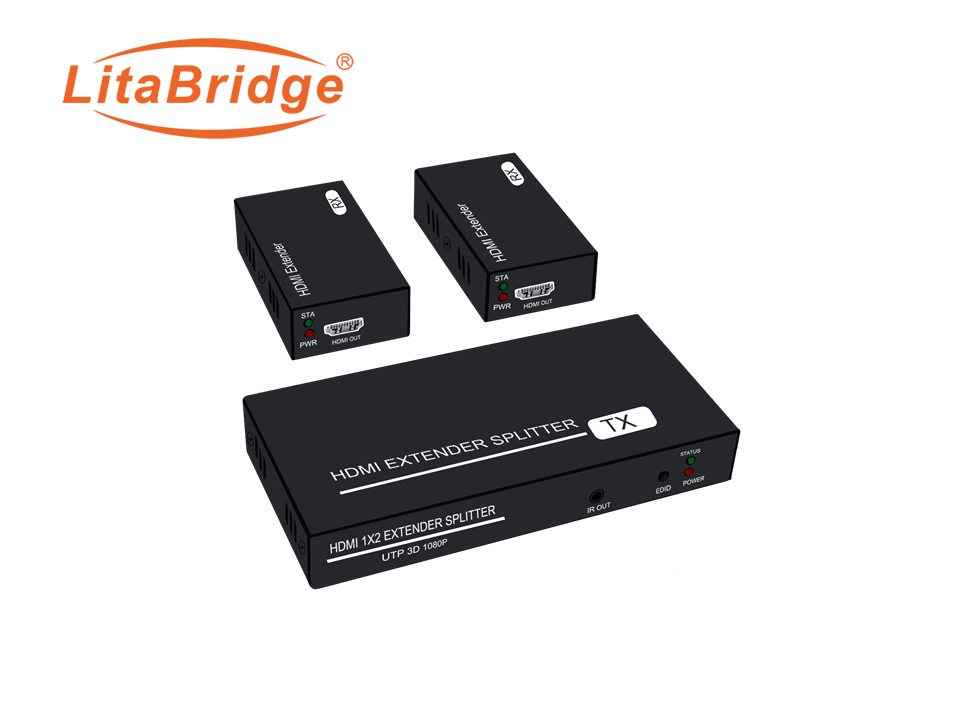

Newbridge® The HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable. It is divide one channel input into 2 channels output and 2 channels
loopout, two of them can transmit high-definition video signals over a single CAT6 cable up to 50 meters. It supports high resolution up to 1080p and Support bidirectional 20-60KHz IR.
The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution | Max 1920X1080@60Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
IR | Interface | 3.5mm earphone seat |
Signal direction | bidirectional direction | |
Signal type | Digital | |
IR frequency | 20-60KHz | |
Ethernet | Interface | RJ45 |
Transmission distance | CAT6---50M | |
Other | Power supply | The power adapter: DC 12V/1A |
Power dissipation | MAX 6W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | TX:150*71*23mm/RX:81*45*23 | |
The warranty | 1 year free warranty | |
Port name | Description |
HDMI IN/ HDMI OUT | HDMI signal input/ output |
IR IN/IR OUT | IR signal input/output |
UTP | RJ45 port connect cat6 |
EDID | send the HDMI IN at the TV access, long press EDID button for 3 seconds, status indicator light flashing, completed copy EDID. |
EQ | EQ automatic adjust. When the video is not clear or unstable, it can be adjusted automatically through the EQ button |
DC 12V | Power adapter socket |
LED indicator | Description |
STATUS/ STA | Video signal indicator |
POWER/ PWR | System power indicator |
