FEATURES
Transmits HDMI video and audio signals up to 100M over a single Cat6 cable;
Support video resolution up to 3840*2160@30Hz ；
Compliance with HDMI 1.4 standard protocol ；
Support HDCP1.4 -- High-bandwidth digital content protection technology ；
Can automatically identify and configure various display modes ；
Built-in automatic adjustment system, make the image smooth, clear and stable ；
Easy to install, plug and play ；

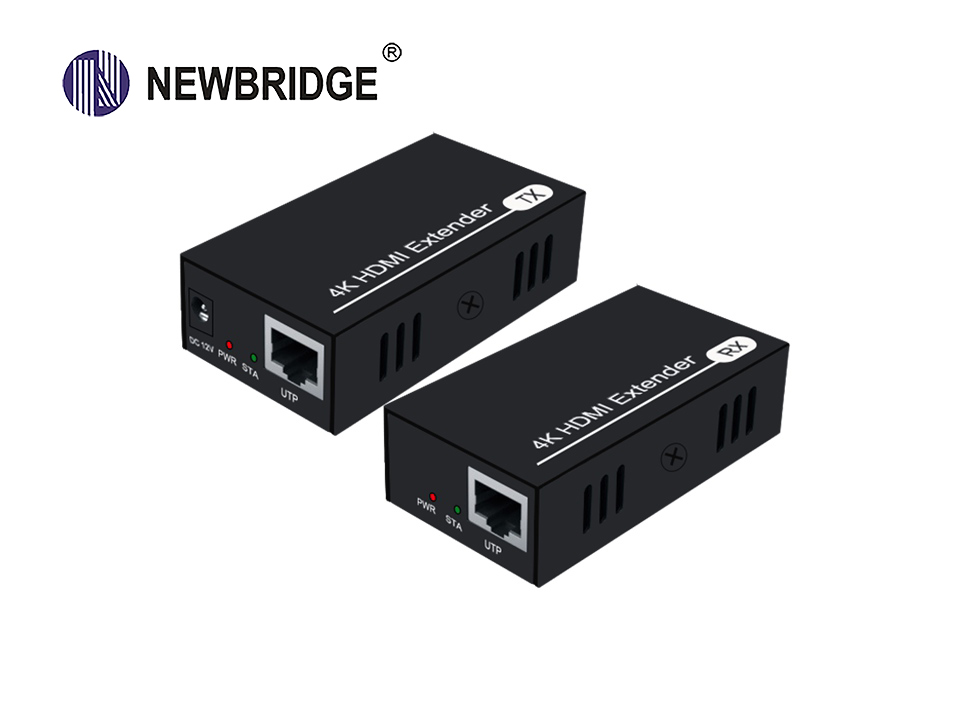

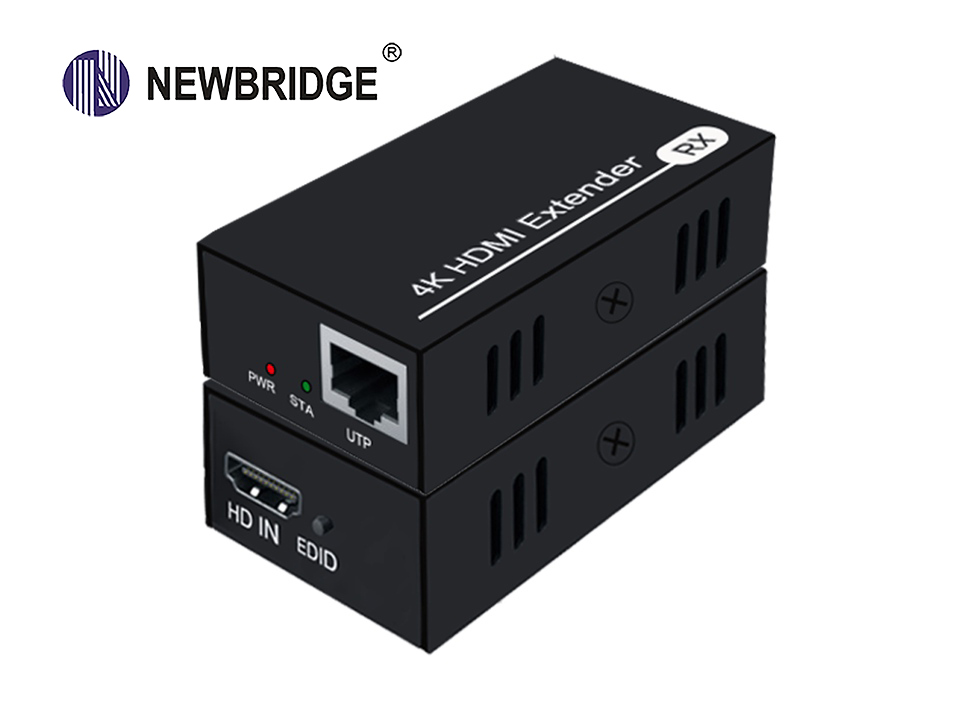

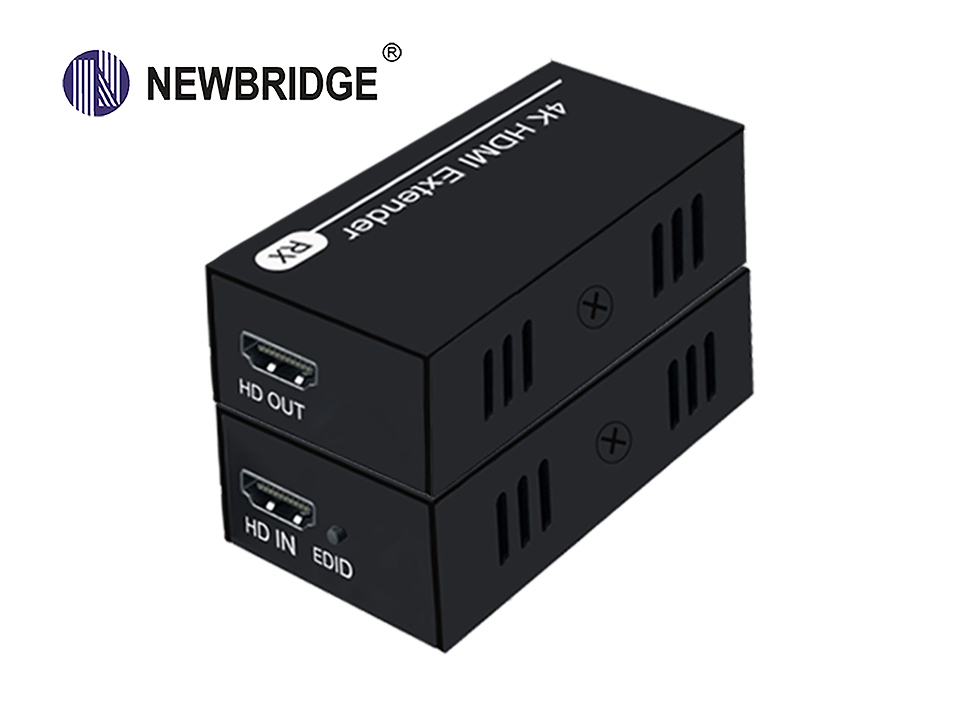

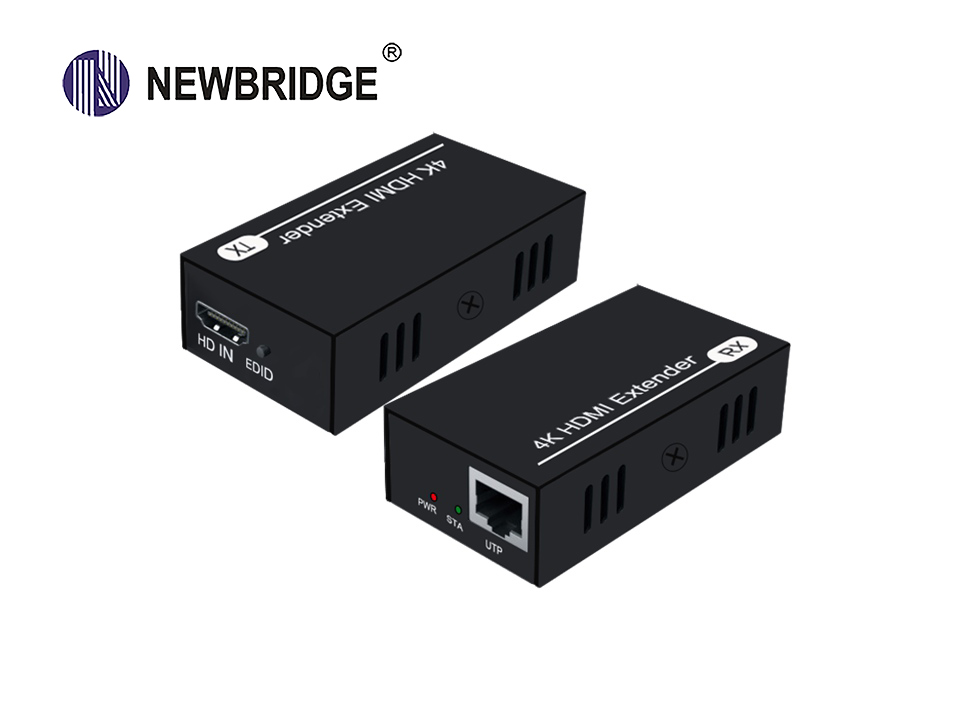

Newbridge® The HDMI extender provides extension of HDMI signals long distances over a single Cat6 cable, it supports high resolution up to 3840*2160@30Hz.The extender can use for a wide range of applications requiring long distance transmission of high resolution, It is a reliable, high performance and efficient HDMI signal extension method.
Parameter | Description | |
Video | Standards | HDMI 1.4; HDCP1.4 |
bandwidth | 225MHz | |
Data rate | 10.2Gbps | |
Resolution | 3840*2160@30Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
Ethernet | Interface | RJ45 |
Transmission distance | CAT6---100M CAT5E---80M | |
Other | Power supply | The power adapter: DC 12V/1A |
Power dissipation | MAX 3.6W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 81.5*45.5*23 mm | |
The warranty | 1 year free warranty | |
Video | Standards | HDMI 1.4; HDCP1.4 |
bandwidth | 225MHz |

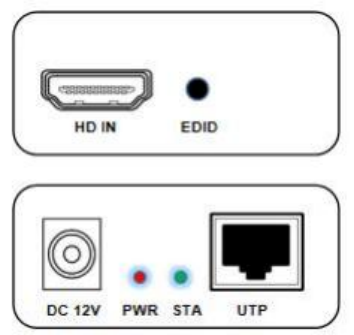

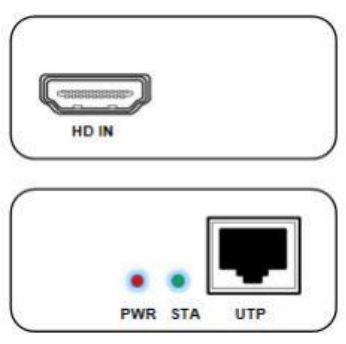

Port name | Description |
HD IN/HD OUT | HDMI signal input/output |
UTP | Network connector |
DC 12V | Power adapter socket |

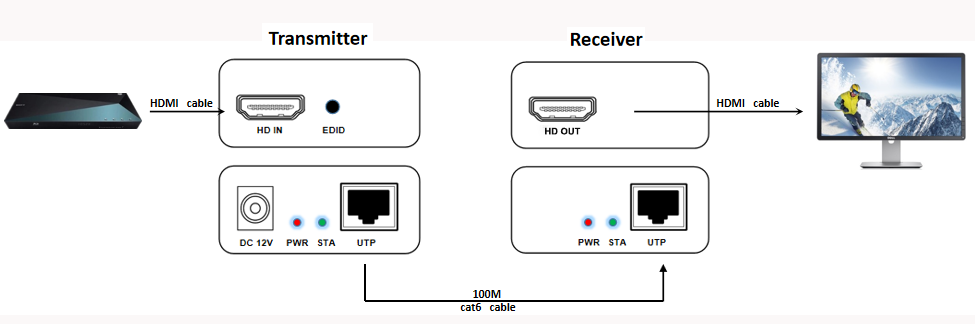

EDID | You need to connect TX to the signal source, RX to the monitor, TX and RX with a network cable, short press the EDID button, you will learn the EDID of the monitor. |
LED indicator | Description |
STA | HDMI signal indicator |
PWR | Power indicator |
