FEATURES
Network data output mode: IGMP ；
IP address allocation method: DHCP Server
HDCP solution: adaptive signal input ；
Max Resolution:1920X1080p@60Hz ；
Delay is only 80ms ；
Transmission distance: 150m ；
Easy to install, plug and play ；

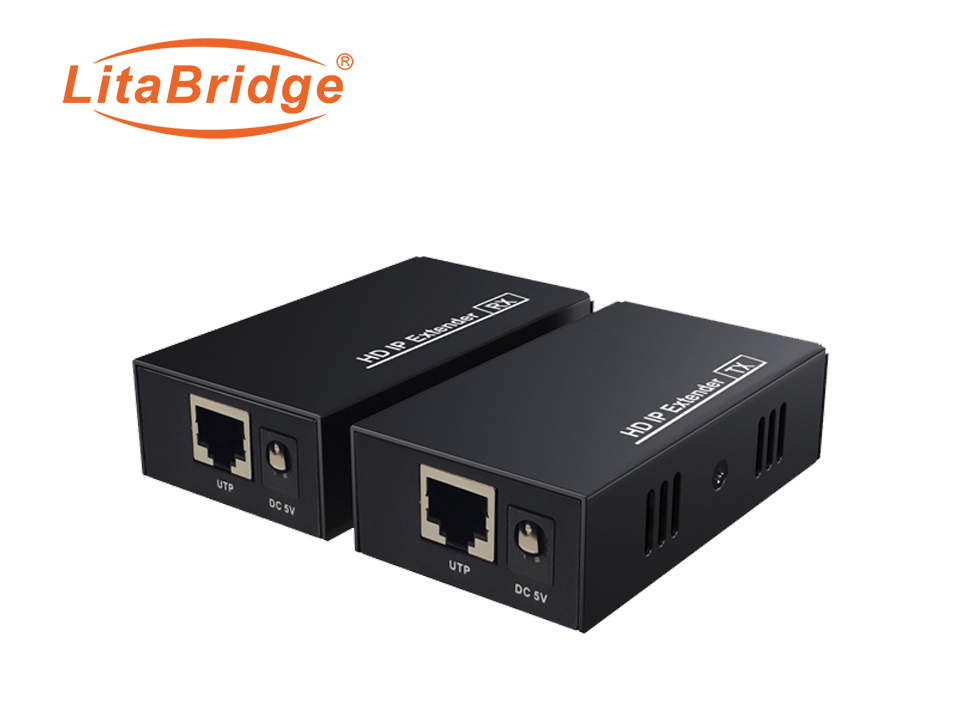

Newbridge® The HDMI extender provides extension of HDMI signals long distances over a single CAT6 cable, it supports high resolution up to 1080p, EDID copy function. The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security。
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution | 1920X1080@60Hz, 3D | |
Connector | HDMI-A | |
Impedance | 100Ω | |
Ethernet | Interface | RJ45 |
Transmission distance | CAT6---150M | |
Other | Power supply | The power adapter: DC 5V |
Power dissipation | MAX 3W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 81*43*23mm | |
The warranty | 1 year free warranty | |
Parameter | Description | |
Video | Standards | HDMI 1.3; HDCP 1.2 |
Panel |
Port name | Description |
HDMI IN/ HDMI OUT | HDMI signal input/output |
Cat6 | RJ45 port; |
EDID | EDID Copy button, Press 3 seconds, copy EDID from HDMI IN display device to system .If HDMI IN interface no display connect, restore default EDID. |
DC 5V | Power adapter socket |
LED indicator | Description |
PWR | System power indicator |
STA | HDMI signal indicator |
