FEATURES
Support one HD video source divided into two HD video signal output；
Support HDMI2.0 standard, the highest resolution is 3840*2160@60HZ video；
Comply with HDCP2.2 standard - high bandwidth digital content protection technology
Support stereo audio output
Automatically match the EDID, when the speaker or earphone is connected, the EDID output of the audio part is stereo；
High compatibility, can auto-match source and display device；
Built-in automatic adjustment system, make the image smooth, clear and stable
Simple to install, plug and play；
Newbridge® The HDMI splitter divides one high-definition video source into two high-definition video signals, and supports automatic matching of EDID. When connected to speakers or headphones, the audio part of the EDID output is stereo. The device has excellent image processing and transmission capabilities, which makes the distributed signal more smooth and stable. It is a reliable, high-performance and efficient HDMI signal distribution method.
Parameter | Description | |
Video | Standards | HDMI 2.0; HDCP 2.2 |
Maximum pixel clock | 225MHz | |
Maximum data rate | 10.2Gbps | |
Resolution | Max 3840*2160@60Hz | |
Connector | HDMI-A | |
Impedance | 100Ω | |
Recommended maximum input/output distance for HDMI. | Less than 5 meters, at 1920x1080@60hz. | |
Other | Power supply | The power adapter: DC 5V |
Power dissipation | MAX 2W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 92.48*62.18*17.8mm | |
The warranty | 1 year free warranty | |

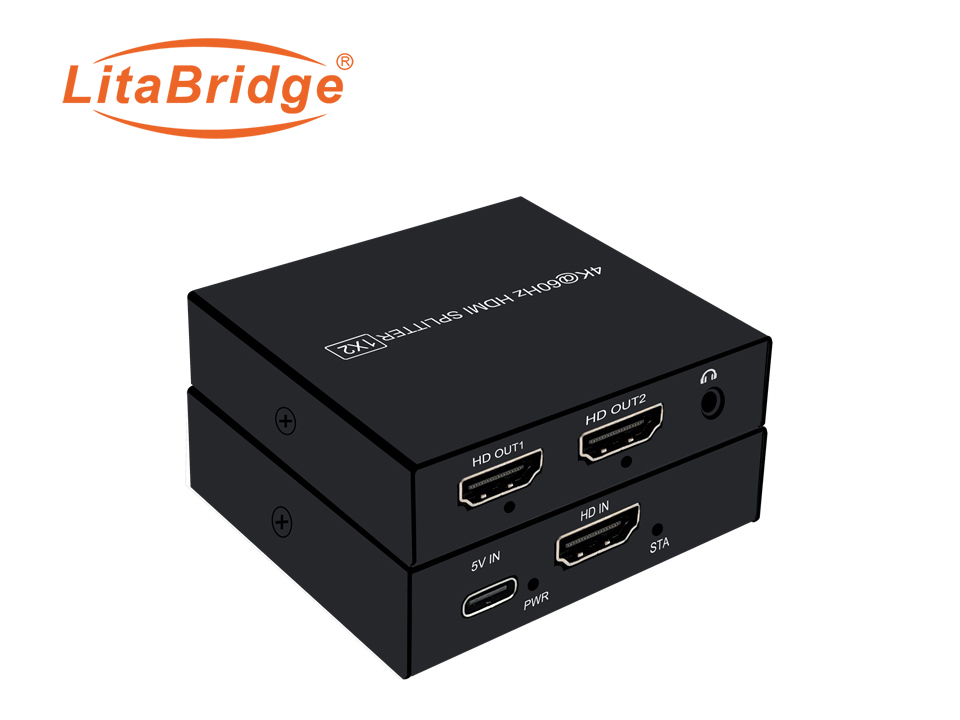

Panel |
Port name | Description |
OUTPUT1-OUTPUT2 | HDMI signal output. |
INPUT | HDMI signal input. |
DC 5V | Power adapter input. |
Stereo audio output. | |
LED indicator | Description |
PWR | Power indicator light |
STA | Video source signal indicator light |
