FEATURES
Transmits HDMI video and audio signals over a pair fiber optic cable ；
Support video resolution max up to 1920x1200@60Hz, 3D ；
Compliance with HDMI 1.3 standard ；
Support for independent audio input and output ；
Support EDID copy, can match many kind display device ；
Support RS232 transparent transmission ；
High compatibility, can auto-match source and display device ；
Built-in automatic adjustment system, make the image smooth, clear and stable
Built-in ESD protection system ；
Simple to install, plug and play ；

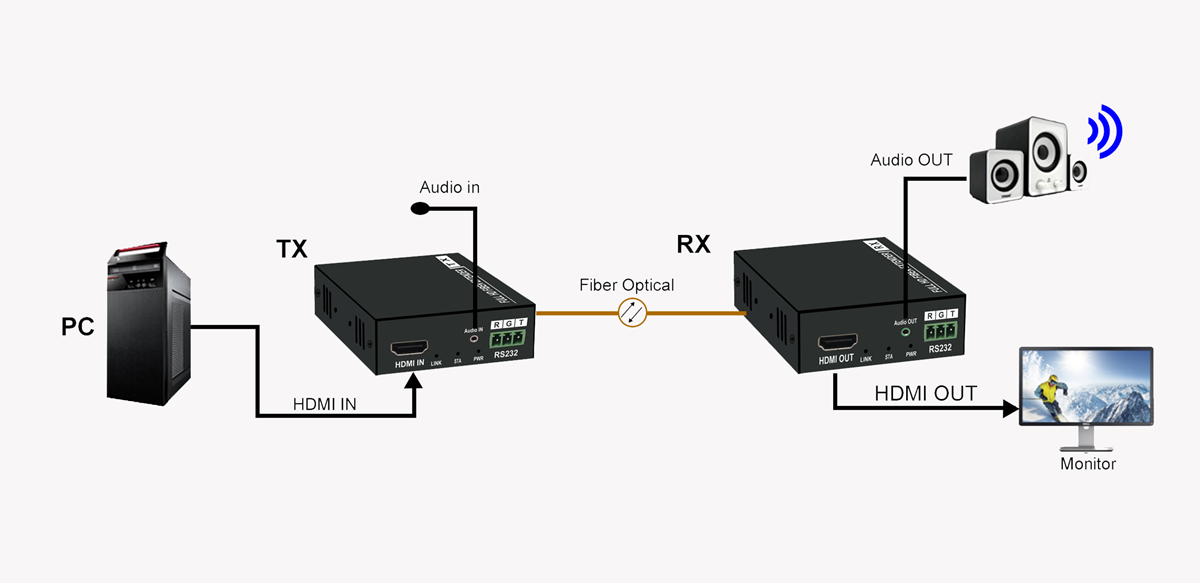

Newbridge®The HDMI Fiber optic extender provides extension of HDMI and 3D signals long distances over one fiber optic cable, it supports resolution max up to
1920*1200@60Hz,Support EDID copy . The extender can use for a wide range of applications requiring long distance transmission of high resolution with high quality by its good stability and powerful security.
Parameter | Description | |
Video | Standards | HDMI 1.3 |
Maximum pixel clock | 165MHz | |
Maximum data rate | 6.75Gbps | |
Resolution range | Up to 1920*1200@60Hz, 3D | |
Connector | HDMI-A Interface | |
HDMI Cable Range | <5M( Resolution: 1920*1200@60Hz) | |
Impedance | 100Ω | |
RS232 | Interface | Industrial terminal |
Signal direction | Unidirectional transmission | |
Baud rate | Adaptive,max up to 115200 bps | |
Data bit | 8 bit | |
Optical fiber | Interface | SFP model – LC connector |
Fiber type | Single-mode | |
Wavelength | Single-mode 1310nm | |
Interface bandwidth | 10Gbps | |
Transmission distance | Single-mode fiber: standard 2km | |
Other | Power supply | The power adapter: DC 5V/2A or 12V/1A |
Power dissipation | MAX 5W | |
Temperature | Operating: -5℃ ~ +70℃ | |
Humidity | Operating: 5% ~ 90% | |
Dimension | 107.71*100*27mm | |
The warranty | 1 year free warranty | |
Port name | Description |
DVI IN / DVI OUT | HDMI signal input/output |
AUDIO IN / AUDIO OUT | Audio input / output |
EDID | EDID Copy button, Press 3 seconds, copy EDID from HDMI IN display device to system .If HDMI IN interface no display connect, restore default EDID. |
DC5-12V | Power adapter socket |
RS232 | RS232 interface |
OPTICAL | SFP model --- LC connector(T : transmitter,R:receiver) |
LED indicator | Description |
LINK | Optical fiber signal connection indicator |
STA | Video signal connection indicator |
POWER | System power indicator |
